Remove/install front door power window motor - AR72.29-P-1860V

MODEL 171.4

Shown on right front door

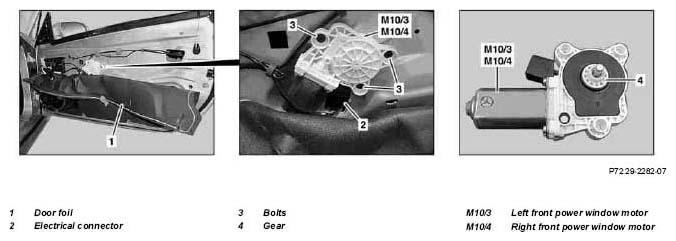

Fig 1: Identifying Front Door Power Window Motor Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Loosen door foil (1) on left or right front door	Loosen door foil (1) only until left front power window motor (M10/3) and right front power window motor (M10/4) are accessible.	AR72.10-P-1010V
2	Disconnect electric connector (2)
3	Unscrew bolts (3) from left front power window motor (M10/3) or right front power window motor (M10/4)		*BA72.29-P-1001-01A
4	Press left front power window motor (M10/3) or right front power window motor (M10/4) off of inner door panel with mounting wedge and remove		Figure
		Installation:  Coat gear (4) with Isoflex Topas L 32	*BR00.45-Z-1012-06A
5	Install in the reverse order

ELECTRIC SIDE DOORS

Number	Designation		Model 171
BA72.29-P-1001-01A	Bolt, motor of power window, front door	Nm	4.5

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1012-06A	Lock cylinder grease spray 50 ml	A 002 989 06 51
