Remove/install front door control unit - AR72.29-P-1000V

MODEL 171.4

Shown on right front door

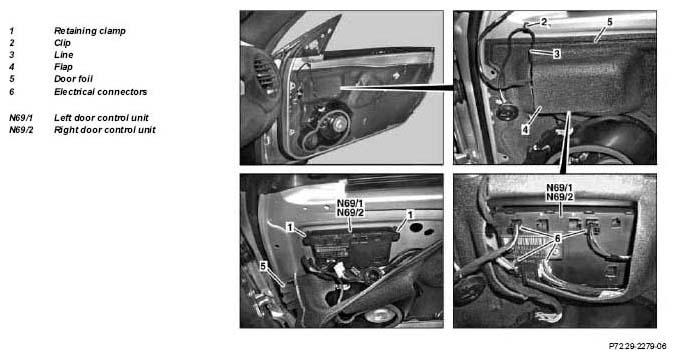

Fig 1: Identifying Front Door Control Unit Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

26.6.06

"Disconnect/connect battery ground line" removed

	Remove/install
1.1	Transfer basic data of left door control unit (N69/1) or right door control unit (N69/2) to STAR DIAGNOSIS	Only when replacing left door control unit (N69/1) or right door control unit (N69/2). Installation:  Transfer basic data from STAR DIAGNOSIS to left door control unit (N69/1) or right door control unit (N69/2).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WE58.40-Z-1013-06A
2	Remove door lining from left or right front door		AR72.10-P-1000V
3	Remove clip (2) with suitable pliers and route lines (3) behind flap (4) of door foil (5).
4	Disconnect electrical connectors (6) from left door control unit (N69/1) or am right door control unit (N69/2)	Number of electrical connectors (6) depends on equipment
5	Loosen door foil (5) with suitable tool until left door control unit (N69/1) or right door control unit (N69/2) are accessible	Carefully loosen door foil (5) to prevent damaging paint on front door Installation:  If the glue bead on the door foil (5) is partially damaged, repair damaged section with butyl cord Route new butyl cord parallel to damaged glue bead on door foil (5).Remove glue residues from front door and clean bonding surfaces. Roll on door foil (5) with roller.
		Sealing cord	*BR00.45-Z-1086-01A
		Cleaner	*BR00.45-Z-1025-04A
			Figure
6	Press retaining clamps (1) on left door control unit (N69/1) or right door control unit (N69/2) together with suitable pliers and remove left door control unit (N69/1) or right door control unit (N69/2)
7	Install in the reverse order

Fig 2: Identifying Roller (168 589 05 63 00)

Courtesy of MERCEDES-BENZ USA

WORKSHOP EQUIPMENT/MB TESTERS

WE58.40-Z-1013-06A

STAR DIAGNOSIS Compact diagnosis system for passenger cars, order number 6511 1801 00

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1086-01A	Sealing cord	A 005 989 12 71 10
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
