Remove/install crank window in front door - AR72.10-P-1900V

MODEL 171.4

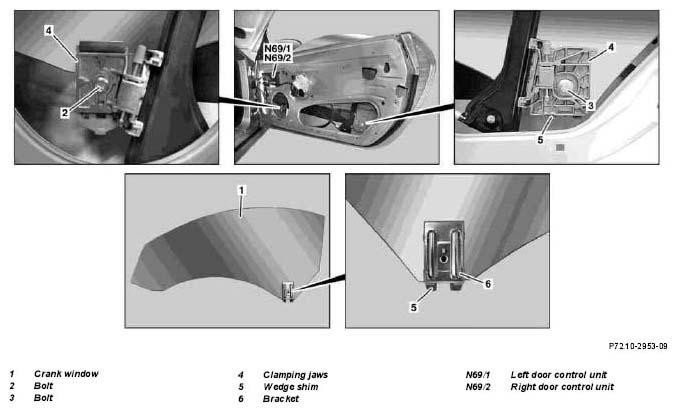

Fig 1: Identifying Crank Window In Front Door Components

Courtesy of MERCEDES-BENZ USA

Shown on right front door

	Remove
	Risk of injury  due to hands being crushed when window glass is not secure	Secure window to prevent it from falling down.
1	Remove door foil from left or right front door		AR72.10-P-1010V
2	Remove inner sealing rail from front door		AR72.10-P-1600V
3	Remove outer sealing rail from front door		AR72.10-P-1700V
4	Connect STAR DIAGNOSIS and move crank window (1) up until bolts (2, 3) are accessible and the crank window (1) can be reached from top.	The crank window (1) is lowered and raised with STAR DIAGNOSIS.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A
5	Loosen bolt (2) and unscrew bolt (3)
6	Remove crank window (1) upward from door shaft.	Carefully remove crank window (1) from door shaft to prevent damaging the crank window (1).
7.1	Remove bracket (6) from crank window (1) with wedge shim (5).	Only when replacing crank window (1).
	Install
8.1	Install bracket (6) on crank window (1) with wedge shim (5).	Only when replacing crank window (1).
9	Install crank window (1) in door shaft, insert clamping jaws (4) and screw in bolt (3).	Carefully install crank window (1) in door shaft to prevent damaging the crank window (1).
10	Adjust crank window (1)		AR72.10-P-1950-04V
			*BA72.10-P-1008-01AB
			*BA72.10-P-1009-01AB
11	Install outer sealing rail on front door		AR72.10-P-1700V
12	Install inner sealing rail on front door		AR72.10-P-1600V
13	Adjust crank window (1)		AR72.10-P-1950V

FRONT DOOR

Number	Designation		Model 171
BA72.10-P-1008-01AB	Nut, power window to inner door panel	Nm	9
BA72.10-P-1009-01AB	Bolt, window to front power window	Nm	9

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
