Remove/install bumper protective strip - AR88.80-P-2220R
MODEL 230.4 except CODE (P99) "AMG Black Series" special model
Shown on front bumper on vehicles up to 28.2.06 with code (220) Parktronic system (PTS)

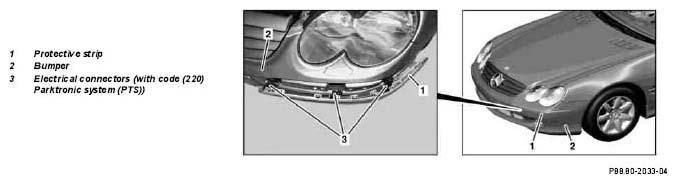

Fig 1: Identifying Bumper Protective Strip Components - Shown On Front Bumper On Vehicles Up To 28.2.06 With Code (220) Parktronic System (PTS)
| Remove/install | |||
|---|---|---|---|
| On vehicles as of 1.3.06 it is no longer possible to remove protective strip from front bumper (2). | |||
| 1 | Mask paint on bumper (2) in area of protective strip (1) with suitable adhesive tape. | ||
| 2 | Unclip protective strip (1) from bumper (2). | ||
| Figure | |||
| 3 | Disconnect electrical connectors (3) from PTS ultrasonic sensors and remove protective strip (1). | On vehicles with code (220) Parktronic system (PTS) | |
| 4 | Remove front PTS ultrasonic sensors | When replacing protective strip (1) on front bumper (2) on vehicles with code (220) Parktronic system (PTS). | AR54.65-P-0001R |
| 5 | Remove rear PTS ultrasonic sensors | When replacing protective strip (1) on rear bumper (2) on vehicles with code (220) Parktronic system (PTS). | AR54.65-P-0002R |
| 6 | Install in the reverse order |
