Remove/install rear shock absorber - AR32.25-P-0110GZ

Model 164

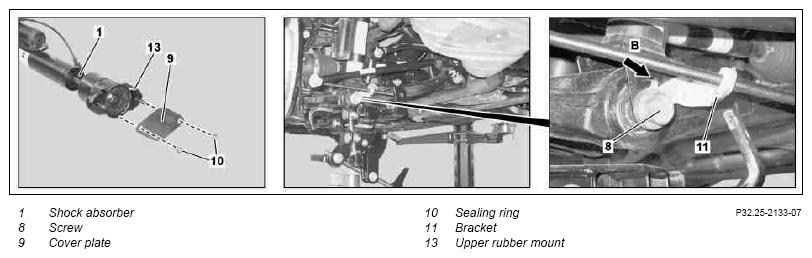

Fig 1: Identifying Rear Shock Absorber Remove/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

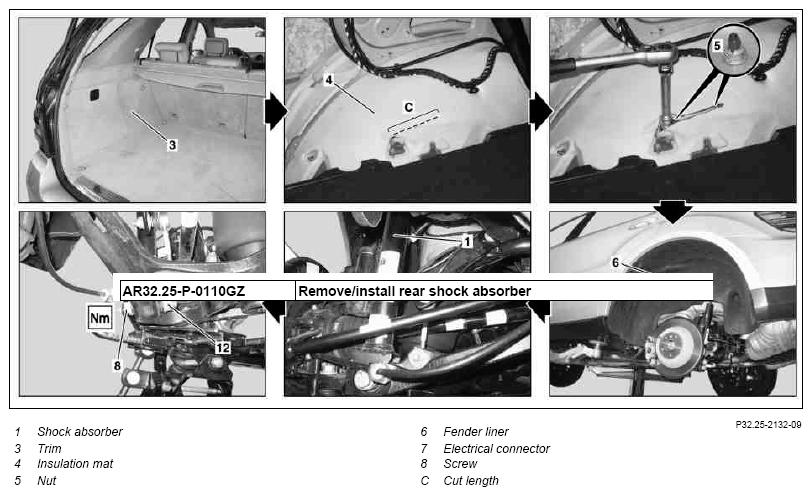

Fig 2: Identifying Rear Shock Absorber Remove/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

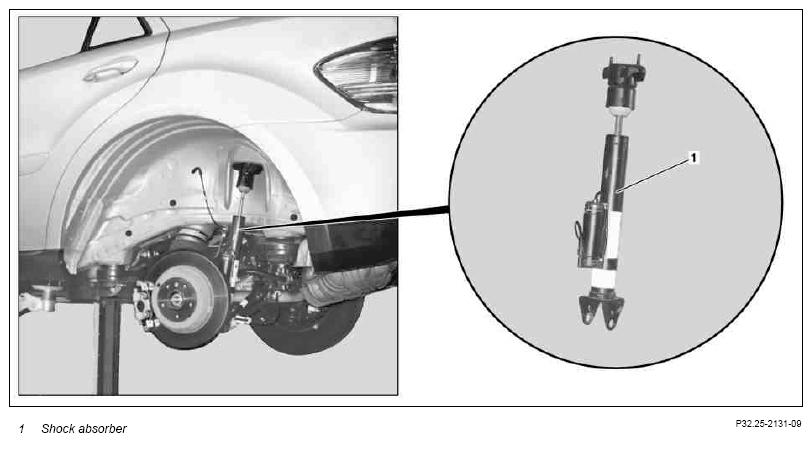

Fig 3: Identifying Rear Shock Absorber Remove/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Remove paneling (3)	Model 164.1	AR68.30-P-4800GZ
		Model 164.8	AR68.30-P-4800RT
2	Cut the insulation mat (4) in the area of the upper fastening of the shock absorber (1) and fold up	Carefully cut the insulation mat (4) and fold up. Otherwise the paint or the insulation mat (4) will be damaged. Cut length (C) approx. 12 cm. Right side: Do not damage the wiring harness of the ADS body sensor! Seal cut in insulation mat (4) using duct tape.
3	Secure vehicle on vehicle lift		AR00.60-P-0100GZ
4	Detach rear complete wheel
			AP40.10-P-4050Z
5	Cut out cutout for shock absorber (1) on the fender liner (6)		AR88.10-P-1400-01GZ
		If shock absorbers (1) without protective pipe are replaced with shock absorbers (1) with protective pipe, it is necessary to cut out the fender liner (6) in the area of the protective pipe.
6	Release and disconnect electrical connection (7)	Model 164 with code 489 (AIRMATIC)
7	Raise wheel suspension at supporting joint slightly
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
		Wheel suspension must be supported. Otherwise the steel spring may come out or the air spring can be damaged.
8	Remove ADS body sensor with bracket	Model 164 with code 489 (AIRMATIC)
9	Unscrew nuts (5)	Self-locking nut, shock absorber to frame floor	*BA32.25-P-1002-03K
10	remove screw/bolt (8)	The lug of the bracket (11) must engage in the hole of the shock absorber (1) (arrow B).
		Self-locking nut, shock absorber to spring control arm	*BA32.25-P-1001-03K
11	Slide damper (1) together and remove	Remove shock absorber (1) with cover plate (9) and remove sealing rings (10).
12	Remove sealing rings (10) and cover plate (9) from shock absorber (1)	Replace sealing rings (10).
	Check
13	Check cover plate (9) and upper rubber bushing (13)	Check the condition and whether there is any damage, replace if necessary.
		Nut to piston rod	*BA32.25-P-1003-03K
14	Check shock absorber (1)	Model 164 except code 489 (AIRMATIC) Model 164 with code 489 (AIRMATIC)
		Model 164 except code 489 (AIRMATIC)	AR32.25-P-0121A
15	Install in the reverse order

REAR AXLE SHOCK ABSORBER

Number	Designation			Model 164.1/8
BA32.25-P-1001-03K	Self-locking nut, shock absorber to spring control arm	Stage 1	Nm	100
		Stage 2	∠°	120

REAR AXLE SHOCK ABSORBER

Number	Designation			Model 164.1/8
BA32.25-P-1002-03K	Self-locking nut, shock absorber to frame floor	Stage 1	Nm	25
		Stage 2	Nm	35

REAR AXLE SHOCK ABSORBER

Number	Designation		Model 164.1/8
BA32.25-P-1003-03K	Nut to piston rod	Nm	30
