Fill power steering pump and bleed - AR46.30-P-0010TX

MODEL 219 with ENGINES 272, 273, 642

Shown on engine 272.964

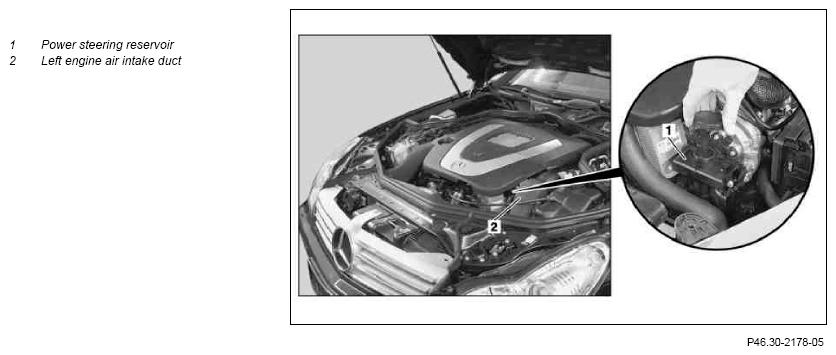

Fig 1: Identifying Power Steering Reservoir And Left Intake Air Duct - Shown On Engine 272.964

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Hoist vehicle with lifting platform until wheels are free		AR00.60-P-1000TX
2	Remove left engine intake air duct (2) upstream of air filter	Engines 272, 273
3	Remove engine trim panel	Engine 642	AR01.10-P-2405TQ
4	Remove cap of power steering expansion reservoir (1).	Press the cap downwards and turn counterclockwise through 90°.
	Charging
5	Fill expansion reservoir (1a) with MB-steering gear oil	Do not start the engine!
		If the engine is started there is the danger that air gets into the hydraulic steering system which cannot be removed without taking further action.
		Fill the expansion reservoir (1) of the power steering to approx. 10 mm below the upper edge of the reservoir with MB steering gear oil
		Add MB steering gear oil continuously, until the fluid level remains constant.
			*BF46.20-P-1001-01A
	Bleeding
6	Turn steering wheel from steering stop to steering stop	Do not start the engine!
		If the engine is started there is the danger that air gets into the hydraulic steering system which cannot be removed without taking further action.
		Turn steering wheel slowly from steering stop to steering stop until no more bubbles are ascertained in the expansion reservoir (1)
		Repeat turning the steering from stop to stop several times (up to 30 times). During this process, MB steering gear oil must be poured into the expansion reservoir (1) by a second person.
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the running engine	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
7	Start engine without moving the steering	Allow the engine to run for approx. 1 minute at idle speed. During this process an assistant must observe the steering gear oil level in the expansion reservoir (1) and MB steering gear oil added if necessary.
8	Turn steering wheel from steering stop to steering stop	When the engine is running turn the steering wheel slowly several times from steering stop to steering stop, meanwhile add MB steering gear oil to the expansion reservoir (1)
		Repeat process until the steering gear oil level remains constant in the expansion reservoir (1) and no more bubbles form.
	Checking
9	Check oil level in the expansion reservoir (1) and fill up to the maximum fill level
	Power steering - checking and correcting oil level		AP46.00-P-4611TX
10	Check the steering system for leaks and proper operation when the engine is running	In the event of leakage, find and eliminate cause.
11	Install in the reverse order
