Remove/install side paneling in trunk - AR68.30-P-4800TX

MODEL 219.3

Shown on paneling on left

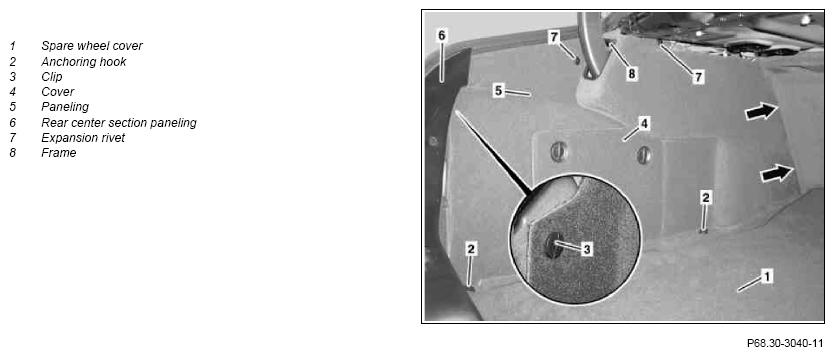

Fig 1: Identifying Side Paneling In Trunk Remove/Install Components - Shown On Paneling On Left

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove rear center section paneling (6)		AR68.30-P-4785TX
2	Remove anchoring hook (2)	Note correct installation positions.
3	Remove expansion rivets (7)	Check expansion rivets (7) for proper state, replace if necessary
4	Remove clip (3)	Check clip (3) for proper state, replace if necessary
5	Remove frame (8).
6	Remove paneling (5) from trunk	Ensure that paneling (5) is seated properly below spare wheel cover (1) and on center paneling (arrows).
7	Install in the reverse order
