Remove/install paneling on rear center section - AR68.30-P-4785TX

MODEL 219.3

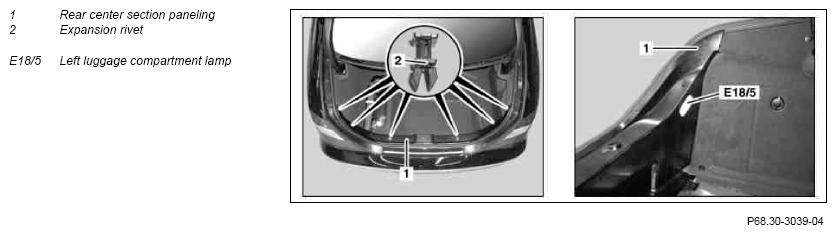

Fig 1: Identifying Paneling On Rear Center Section Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Open trunk lid
2	Switch off left luggage compartment lamp (E18/5) by locking trunk lid lock with suitable screwdriver	Actuate opening handle on outside of trunk lid to unlock trunk lid lock
3	Remove expansion rivets (2)	Check expansion rivets (2) for proper state, replace if necessary
4	Lift rear center section paneling (1) and tilt toward front
5	Disconnect electrical connector from left luggage compartment lamp (E18/5)
6	Remove rear center section paneling (1) from trunk
7	Install in the reverse order
