Retrofit illuminated door sill molding - AZ82.20-P-0001TX

MODEL 219 up to model year 07 Installation of door sill, 2-fold

Shown on door sill molding, 2-fold

Fig 1: Identifying Front Door Sill Moldings

Courtesy of MERCEDES-BENZ USA

	Remove
	Risk of death  caused by contact with parts conducting high voltages.	Do not come into contact with parts that are under high voltage. Persons who wear electronic implants (e.g. heart pacemakers) must not  perform any work on such components.	AS00.00-Z-0020-01A
1	Connect quiescent current retention unit	CMP 12.2 quiescent current retention unit
	Risk of explosion  caused by escaping oxyhydrogen gas. Risk of injury  caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries  caused by short circuit. Risk of poisoning  caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices	No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
2	Disconnect battery ground line	Loosen battery.
		Model 219.3	AR54.10-P-0003TX
	Notes on battery	All models	AH54.10-P-0001-01A
3	Remove rear seat backrest
4	Remove left and right door sill moldings
5	Pull off rubber door seal near the B-pillar on both sides at the front
6	Remove paneling on B-pillar	Left and right paneling.
		Model 219.3	AR68.30-P-4700TX
7	Open cable ducts on both sides of the vehicle at the front and rear
8	Remove side trim in left and right sides of trunk
		Model 219.3	AR68.30-P-4800TX
9	Remove paneling in center of luggage compartment
10	Open rear SAM
11	Remove rear seat side cushions
	Install

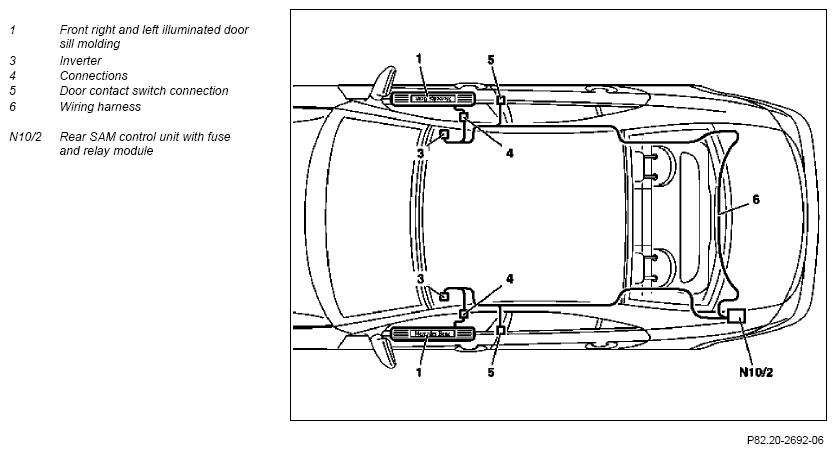

12	Connect wiring harness	Wiring harness for illuminated door sill molding.	AZ82.20-P-0001-02T
13	Carry out function check	By operating the door contact the door sill molding lights up but switches off again automatically after 5 minutes.
14	Install remaining parts onto vehicle	Steps 11 up to 1.
