Remove/install COMMAND display - AR82.85-P-7429SX

MODEL 216.3, 221.0 /1

Illustrated on model 221

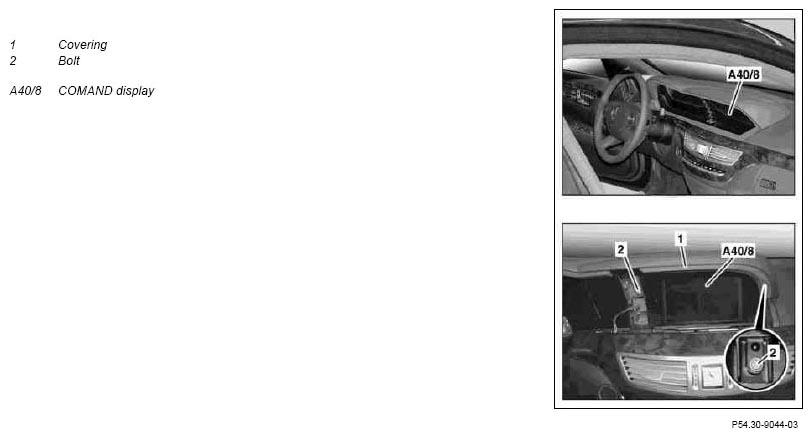

Fig 1: Identifying Command Display, Covering And Bolt

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Stage basic data of COMMAND display (A40/8) in STAR DIAGNOSIS	When replacing COMMAND display (A40/8).
		Installation:  Transfer staged basic data to new COMMAND display (A40/8).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A
2	Switch off ignition and withdraw transmitter key or Keyless Go start/stop button from the EIS [EZS] control unit	Keyless Go start/stop button only for vehicles with code (889) Keyless Go.
3	In working area, cover trim strip on instrument panel with clean rag
4	Remove cockpit switch group		AR54.25-P-1000SX
5	Unclip covering (1) above COMMAND display (A40/8)		*115589035900
6	Remove screws (2), remove COMMAND display (A40/8) from instrument panel and detach electrical connector on rear
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
7	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
