Connect STAR DIAGNOSIS and read out fault memory - AD00.00-P-2000-04A

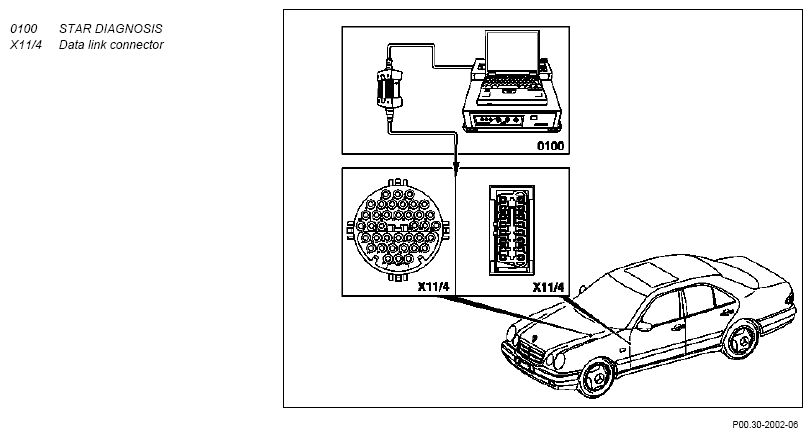

Illustrated on model 210

Fig 1: Identifying Star Diagnosis Connection With Data Link Connector (Illustrated On Model 210)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

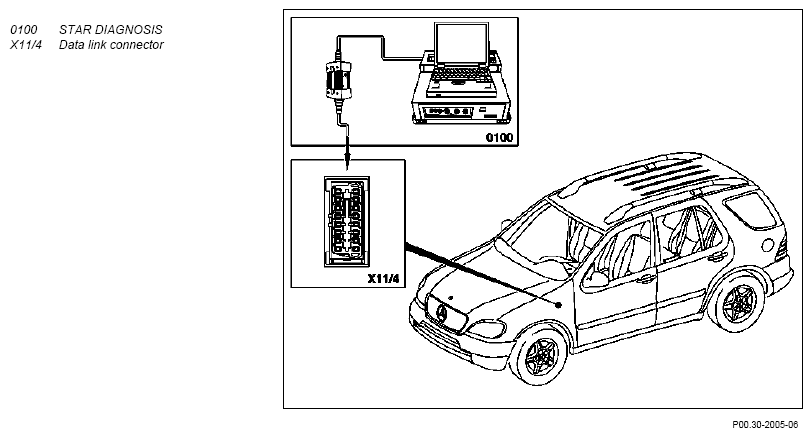

Illustrated on model 163

Fig 2: Identifying Star Diagnosis Connection With Data Link Connector (Illustrated On Model 163)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

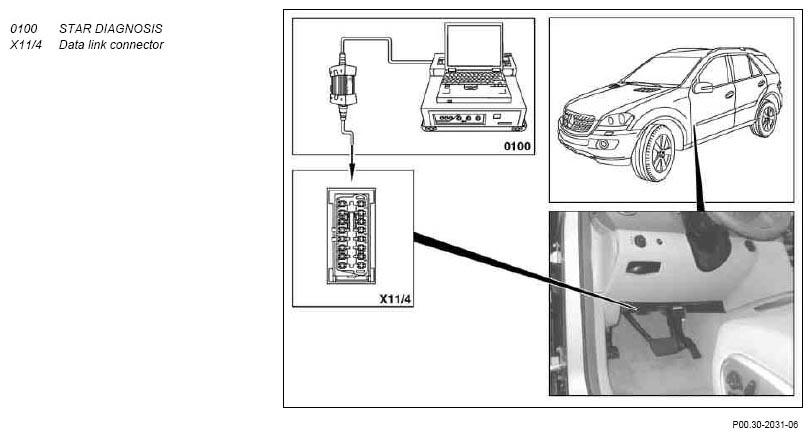

Shown on model 164.1

Fig 3: Identifying Star Diagnosis Connection With Data Link Connector (Shown On Model 164.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

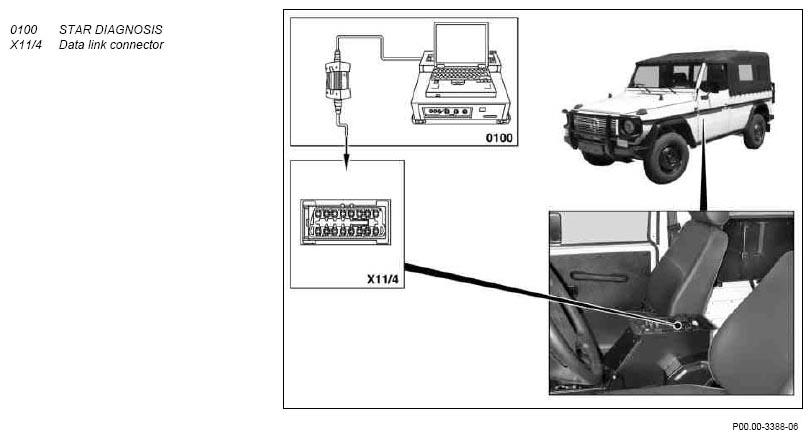

Illustrated on model 461.302

Fig 4: Identifying Star Diagnosis Connection With Data Link Connector (Illustrated On Model 461.302)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

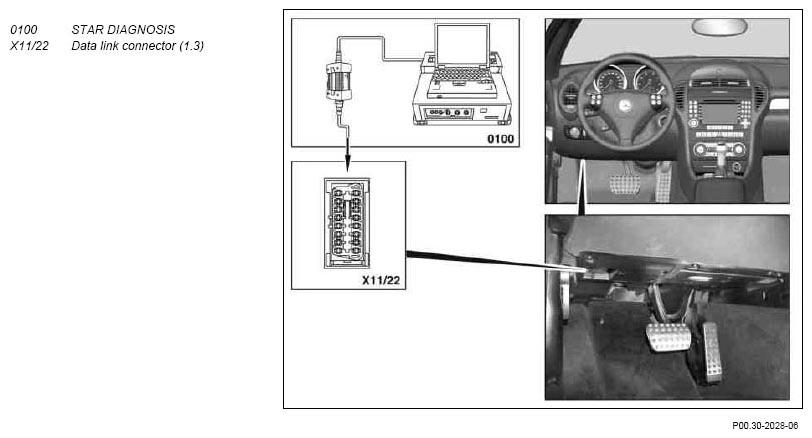

Shown on model 171.4

Fig 5: Identifying Star Diagnosis Connection With Data Link Connector (Illustrated On Model 171.4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Connect Star Diagnosis (0100).
2. Switch on ignition.
3. Start the Diagnosis Assistance System.
4. Select the model series in the menu.

   The work procedures in the diagnosis program are menu-assisted.

5. Disconnect STAR DIAGNOSIS (0100).

   Stored faults which may be caused by disconnecting cables or by simulation during testing operations must be deleted in the diagnostic trouble code memory following completion of the operations.
