Remove/install follower joint of steering knuckle bearing - AR33.20-P-0427TX

WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 211 (except 211.08/09/28/29)

MODEL 219, 230

MODEL 230 except CODE (P99) "AMG Black Series" special model

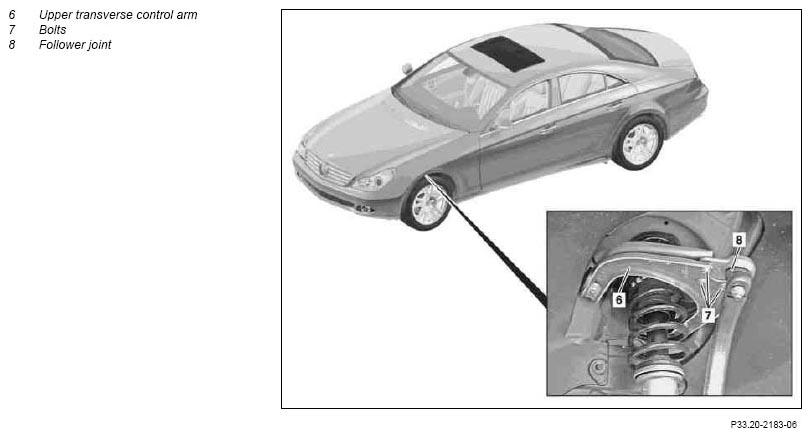

Fig 1: Identifying Follower Joint Components
G07284211Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
MODIFICATION NOTES

9.8.08 SWZ 140 589 00 33 00 for prying off upper ball joint added Step 3 AR33.20-P-0500-01N
REMOVINGINSTALLING Remove/install
1 Remove front wheel
REFER TO MAINTENANCE Remove/install wheels Model 219 AP40.10-P-4050TX
REFER TO MAINTENANCE   Model 211, 230 AP40.10-P-4050Z
2 Pry follower joint (8) off steering knuckle Model 219 AR33.20-P-0500-01TX
TORQUE SPECIFICATION *BA33.20-P-1008-01K
Model 211, 230 AR33.20-P-0500-01N
TORQUE SPECIFICATION *BA33.20-P-1018-01A
TORQUE SPECIFICATION *BA33.20-P-1009-01K
SPECIAL TOOL *210589046300
SPECIAL TOOL *202589023300
SPECIAL TOOL *140589003300
3 Remove bolts (7) TORQUE SPECIFICATION *BA33.20-P-1009-01K
TORQUE SPECIFICATION *BA33.20-P-1019-01A
4 Remove follower joint (8) from upper transverse control arm (6) IMPORTANTInstallation:  Press follower joint (8) all the way in the upper transverse control arm (6).
5 Install in the reverse order IMPORTANT Use bolts and nuts from repair kit.
IMPORTANT Chassis alignment is not necessary.
WHEEL LOCATION, HUB

Number Designation Model 211 except 211.08/09/28/29 Model 230 except code P99
BA33.20-P-1019-01A Nut, follower joint to upper transverse control arm Stage 1 Nm 20 20
Stage 2 ∠° 45 45
WHEEL LOCATION, HUB

Number Designation Model 219.3
BA33.20-P-1009-01K Nut, follower joint to upper transverse control arm Stage 1 Nm 20
Stage 2 ∠° 45
WHEEL LOCATION, HUB

Number Designation Model 211 except 211.08/09/28/29 Model 230 except code P99
BA33.20-P-1018-01A Self-locking nut, upper wishbone follower joint to steering knuckle Stage 1 Nm 20 20
Stage 2 ∠° 90 90
WHEEL LOCATION, HUB

Number Designation Model 219.3
BA33.20-P-1008-01K Self-locking nut, upper wishbone follower joint to steering knuckle Stage 1 Nm 20
Stage 2 ∠° 90
Fig 2: Identifying Thrust Washer M 10X1.5 (210 589 04 63 00)
G07284212Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Puller (202 589 02 33 00)
G07284213Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Puller (140 589 00 33 00)
G07284214Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
