Remove/install outside mirror fold-back motor - AR88.70-P-9070TX

MODEL 216 up to 31.5.09 with CODE (500) Folding left/right outside mirrors except CODE (800) Model year 2010

MODEL 219 with CODE (500) Fold left/right outside mirrors

MODEL 221 up to 31.5.09 with CODE (500) Folding left/right outside mirrors except CODE (800) Model year 2010

Shown on model 219

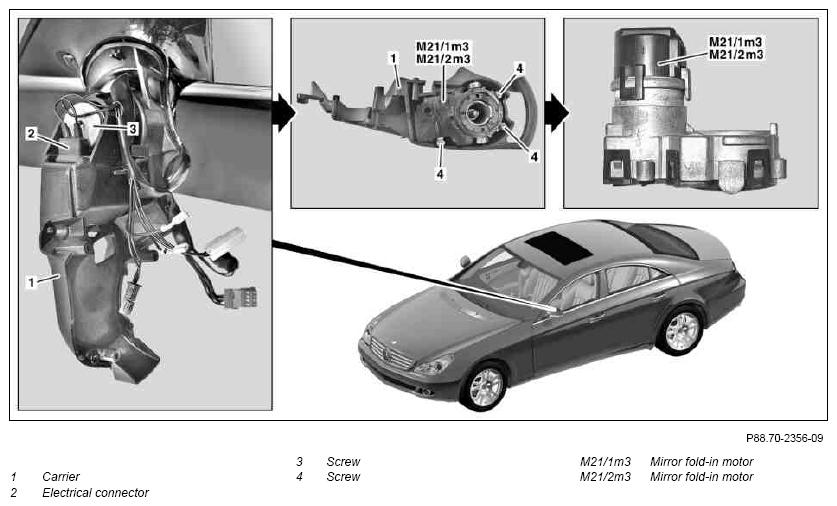

Fig 1: Identifying Outside Mirror Fold-Back Motor Remove/Install Components (Shown On Model 219)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove covering on outside rearview mirror		see AR88.70-P-9040TX
2	Disconnect electrical connector (2)
3	Unscrew bolt (3) and remove carrier (1)		see *BA88.70-P-1002-01B
4	Unscrew bolts (4) and remove power folding mirror motor (M21/1m3) or power folding mirror motor (M21/2m3)
5	Install in the reverse order
