Remove/install outside mirror trim - AR88.70-P-9040TX
MODEL 216 up to 31.5.09 except CODE (800) Model year 2010
MODEL 219
MODEL 221 up to 31.5.09 except CODE (800) Model year 2010

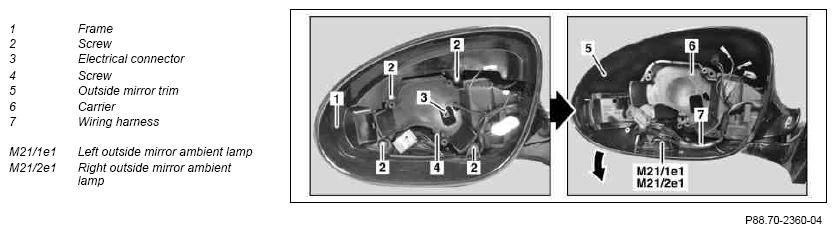

Illustrated on model 219
| Remove/install | |||
| 1 | Remove glass adjustment drive | see AR88.70-P-9060TX | |
| 2 | Remove bolts (2) and remove frame (1) | ||
| 3 | Disconnect electrical connector (3) | ||
| 4 | Unscrew bolt (4) | ||
| 5 | Pivot outside mirror paneling (5) downward (arrow) | ||
| 6 | Unclip left outside mirror ambient lamp (M21/1e1) or right outside mirror ambient lamp (M21/2e1) | ||
| 7 | Pull bulb with frame out of left outside mirror ambient lamp ((M21/1e1) or right outside mirror ambient lamp (M21/2e1) | ||
| 8 | Expose wiring harness (7) | ||
| 9 | Guide outside mirror paneling (5) over carrier (6) and remove | ||
| 10 | Install in the reverse order |
