Removing and installing washer fluid reservoir of windshield washer system - AR82.35-P-6000R
MODEL 230.4 except CODE (P99) "AMG Black Series" special model

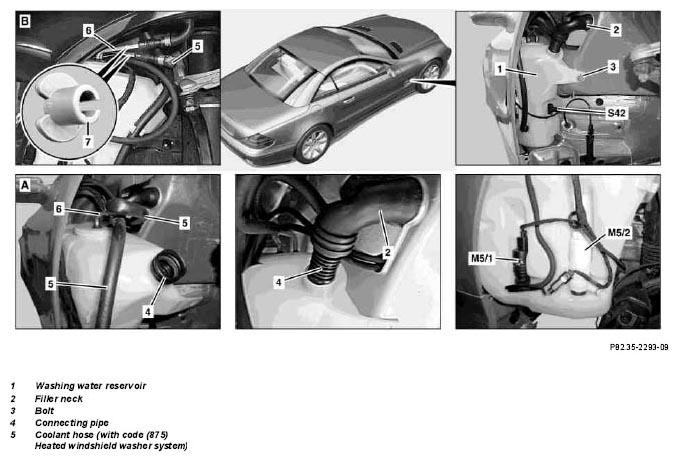

Shown on vehicle with code (875)
Heated windshield washer system
| Remove/install | |||
|---|---|---|---|
| Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| 1 | Reduce pressure in cooling system | ||
| 2 | Remove rear section of fender liner in right front fender | AR88.10-P-1300R | |
| 3 | Pull out windshield washer fluid pump (M5/1) and HCS (SRA) pump (M5/2) complete with hoses and electrical connections upward and out of washer fluid reservoir (1) | ||
| 4 | Disconnect connecting pipe (4) from filler neck (2), then push connecting pipe (4) into washer fluid reservoir (1) | ||
| 5.1 | Detach coolant hoses (5) from washer fluid heater (6) | For vehicles with code (875) Heated windshield washer system, if coolant hoses (5) are secured with clamps (picture A). |
|
| 5.2 | Detach coolant hoses (5) from washer fluid heater (6) using detaching tool (7) | For vehicles with code (875) Heated windshield washer system, if coolant hoses (5) are secured with quick-release fittings (picture B). |
|
| Fig 2 | |||
| 6 | Disconnect electrical connector at the switch of the windshield washer system fluid level control (S42) | ||
| 7 | Unscrew bolt (3). | ||
| 8 | Take out washer fluid reservoir (1) | ||
| 9 | Install in the reverse order | ||
| 10 | Check coolant level, adjust to correct level if necessary. | ||
| Engine cooling system - check fluid level, adjust to correct level. Inspect anticorrosion/antifreeze protection, adjust to correct concentration | Engine 112, 113 | AP20.00-P-2010Z | |
| Engine 272, 273 | AP20.00-P-2010RX | ||
| Engine 275 | AP20.00-P-2010H | ||
| 11 | Fill washer fluid reservoir (1) | ||
| Check windshield washing unit fluid level, top up if necessary | AP82.35-P-8210N |
