Remove/install speakers in rear wall (interior) - AR82.62-P-7838R
MODEL 230.4 except CODE (P99) "AMG Black Series" special model
| Remove/install | |||
|---|---|---|---|
| 1 | Remove left or right safety strap for securing luggage and loads in rear | AR91.40-P-1143R | |

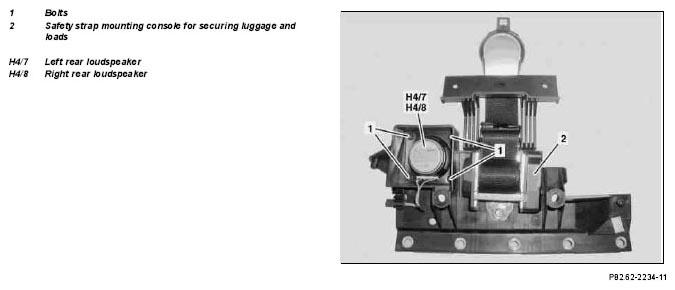

| 2 | Remove bolts (1) and detach left rear speaker (H4/7) or right rear speaker (H4/8) from safety strap mounting console for securing luggage and loads (2) | ||
| 3 | Install in the reverse order |
