Remove/install center high-mounted stop lamp - AR82.10-P-5375RBS (Black Series)
MODEL 230.4 with CODE (P99) "AMG Black Series" special model
| Remove/install | |||
|---|---|---|---|
| 1 | Remove paneling from trunk lid | AR68.30-P-8150RBS | |

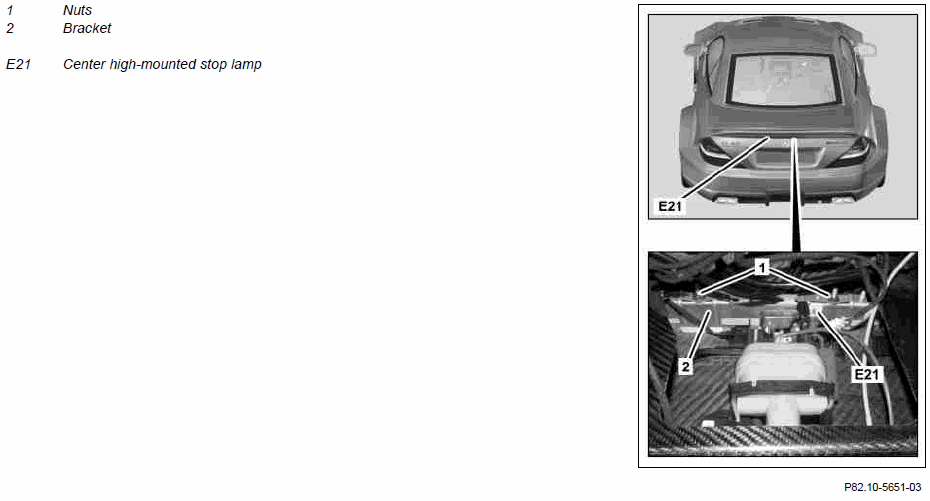

| 2 | Unscrew nuts (1) and remove bracket (2) | ||
| 3 | Pull out center high-mounted brake lamp (E21) outwards from trunk lid, disconnect electrical connector and remove center high-mounted brake lamp (E21) | ||
| 4 | Install in the reverse order |
