Remove/install trunk lid paneling - AR68.30-P-8150RBS (Black Series)

MODEL 230.4 with CODE (P99) "AMG Black Series" special model

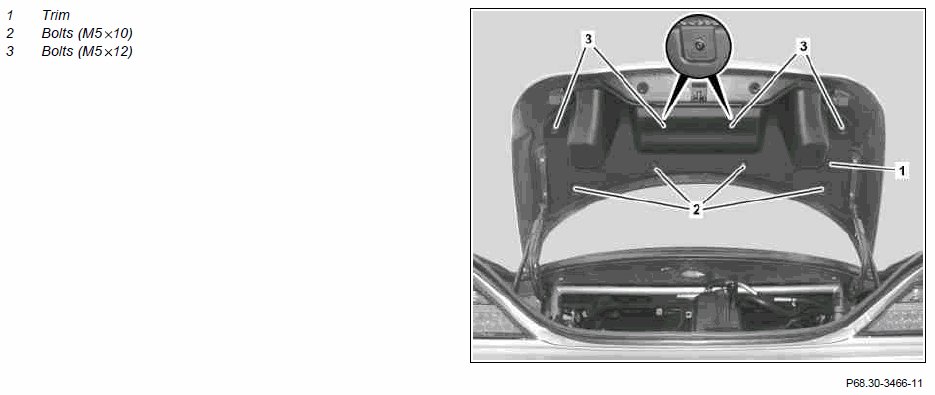

Fig 1: Removing/Installing Trunk Lid Paneling - Black Series

G00542304

Courtesy of MERCEDES-BENZ USA

	Removing
1	Open trunk lid
2	Unscrew bolts (2) and bolts (3)
3	Remove paneling (1) and sealing washers from trunk lid
	Installing
4	Position paneling (1) on trunk lid
5	Tighten bolts (2)	Observe different bolt length to prevent damaging the paneling.
			*BA88.50-P-1036-01A
6	Insert sealing washers at the two center bolts (3) between the paneling (1) and trunklid; tighten bolts (3).	Observe different bolt length to prevent damaging the paneling.
			*BA88.50-P-1036-01A
7	Check gap between paneling (1) and trunk lid in lower area.	The gap must be equal all the way around, if necessary insert shims.
8	Close trunk lid

TRUNK LID

Number	Designation		Model 230
BA88.50-P-1036-01A	Bolt, paneling to trunk lid	Nm	4
