Remove/install rear suspension strut - AR32.25-P-1016SX

MODEL 221.0 /1 except CODE (487) Active Body Control (ABC)

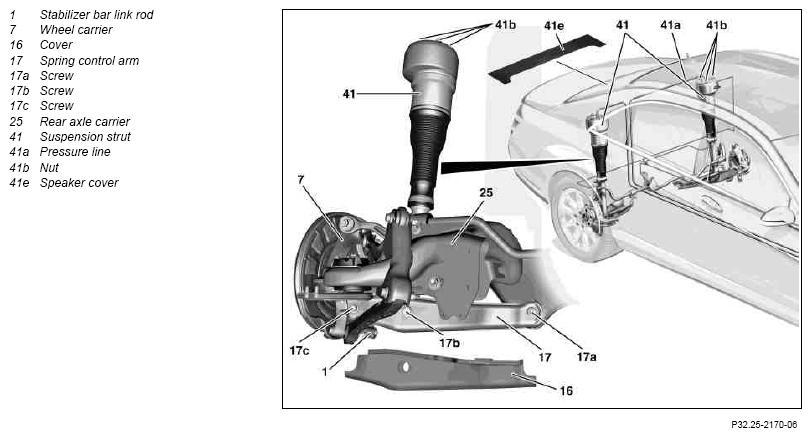

Fig 1: Identifying Rear Suspension Strut Remove/Install Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

4.5.11

Remove rear shelf for vehicles with code (811) Advanced sound system, added

Step 2.2

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on AIRmatic		AH32.22-P-1000-02SX
1	Reduce pressure in suspension strut (41) with STAR DIAGNOSIS
2.1	Unclip speaker cover (41e) from rear shelf and remove	Vehicles except code (811) Advanced sound system
2.2	Remove rear shelf	Vehicles with code (811) Advanced sound system	AR68.30-P-4580SX
3	Remove paneling from C-pillar	Only detach from the C-pillar in order to provide access to the suspension strut threaded connection. Vehicles with top protection, code Z07	AR68.30-P-4490SXS
		Vehicles without top protection	AR68.30-P-4490SX
4	Push the foam interlayer to one side until the pressure line (41a) and nuts (41b) of the suspension strut (41) are freely accessible	Move wiring harness in area of spring tower to one side.
5	Detach pressure line (41a) from suspension strut (41) and place aside		*BA32.25-P-1006-04L
		If pressure line connection or pressure line (41a) is damaged: ↓ Repair AIRmatic pressure line connection.	AR32.22-P-2001-02SX
		Installation: Check the AIRmatic for leaks.	AR32.22-P-8100SX
			Fig 2
			Fig 3
		Leak detection spray	*BR00.45-Z-1002-03A
6	Unscrew nuts (41b) from suspension strut (41)		*BA32.25-P-1004-04L
7	Remove rear wheel
	Remove/install wheels		AP40.10-P-4050SX
8	Remove inner fender from rear fender
9	Disconnect electrical connector in wheel well		AR35.10-P-0010-02SX
10	Detach paneling (16) from spring control arm (17)
11	Detach exhaust rubber mount from flange connection and lower exhaust system	Engine 272, 273, 275	AR49.10-P-7100SX
		Engine 642, 629	AR49.10-P-7100SXI
12	Remove spring control arm (17)	Vehicles with top protection, code Z07	AR35.20-P-0114SX
	Only perform steps 13 to 16 on vehicles without top protection
13	Loosen bolt (17c) securing spring control arm (17) to wheel carrier (7)		*BA35.20-P-1002-01A
14	Detach bolt (17b) securing suspension strut (41) to spring control arm (17)		*BA32.25-P-1005-04L
15	Remove bolt (17a) securing spring control arm (17) to rear axle carrier (25)	Lower the exhaust system using the transmission jack and transmission platform until the bolt (17a) can be removed. Counterhold spring control arm (17) with suspension strut (41).	*BA35.20-P-1001-01A
16	Swing spring control arm (17) downward
17	Remove suspension strut (41)	Installation: When inserting the threaded bolt into the spring tower, do not damage the wiring harnesses (between body and rear shelf) in the area of the spring tower. Installation: Loosely screw on nuts (41b). Do not tighten to specified tightening torque until suspension strut (41) is filled.
	Checking
18	Check suspension strut (41) and replace if necessary	When reinstalling suspension strut (41)	AR32.25-P-1017-02SX
	Dispose of suspension strut.		OS32.25-P-0122-01SY
19	Install in the reverse order

SPRING CONTROL ARM

Number	Designation			Model 221 without code Z07/Z07+Z19	Model 221 with code Z07/Z07+Z19
BA35.20-P-1001-01A	Self-locking nut, spring control arm to rear axle carrier	Stage 1	Nm	60	120
		Stage 2	∠°	90	-
BA35.20-P-1002-01A	Self-locking nut, spring control arm to wheel carrier.	Stage 1	Nm	80	80
		Stage 2	∠°	90	90

SUSPENSION STRUTS

Number	Designation		Model 221 with code Z07/Z07+Z19	Model 221 with 4MATIC
BA32.25-P-1004-04L	Nut, rear suspension strut to body	Nm	30	30
BA32.25-P-1005-04L	Nut, rear strut to spring control arm	Nm	110	110
BA32.25-P-1006-04L	Air suspension pressure line to rear air spring	Nm	5	5

SUSPENSION STRUTS

Number	Designation		Model 221 without 4MATIC and without code 487, Z07/ Z07+Z19
BA32.25-P-1004-04L	Nut, rear suspension strut to body	Nm	30
BA32.25-P-1005-04L	Nut, rear strut to spring control arm	Nm	110
BA32.25-P-1006-04L	Air suspension pressure line to rear air spring	Nm	5

Fig 2: Identifying Slitting Knife (000 589 12 28 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wrench Socket (211 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-03A	Leak detection spray
