Remove/install and disassemble rear shelf - AR68.30-P-4580SXS

MODEL 221.1 with CODE (Z07) Top protection

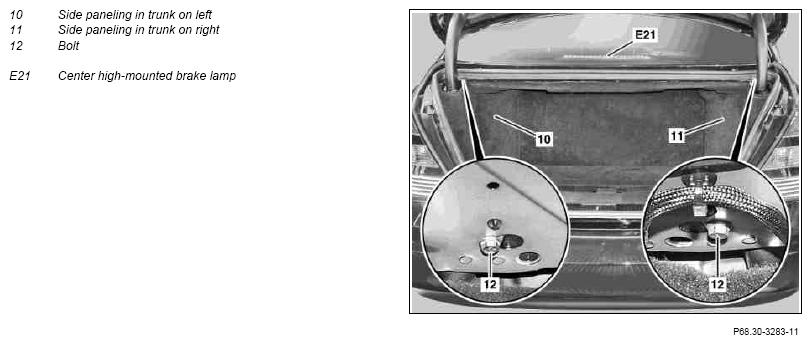

Fig 1: Identifying Rear Shelf Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

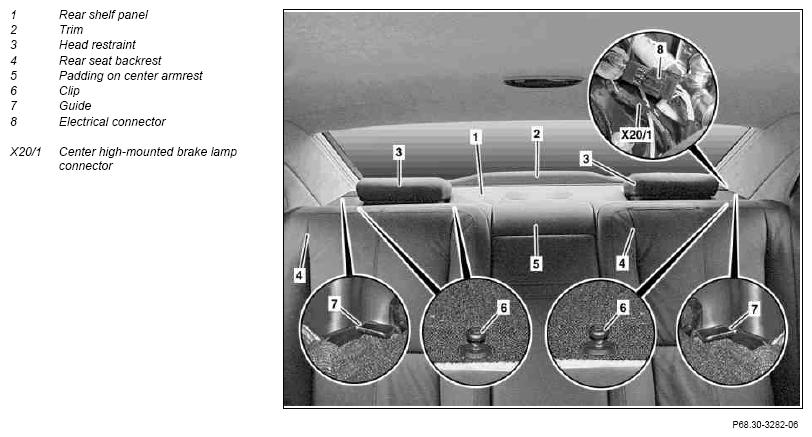

Fig 2: Identifying Rear Shelf Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on avoiding damage to windows installed in special protection vehicles		AH67.00-P-0003-01FB
1	Remove left and right rear head restraints (3)		AR91.16-P-1770SXS
2	Remove trim from left and right C-pillar	Do not remove belt end fittings.	AR68.30-P-4490SXS
3	Remove clips (6)
4	Expose and disconnect center high-mounted brake lamp connector (X20/1)
5	Disconnect electrical connector (8)
6	Lift rear shelf panel (1) and pull out toward front.	Installation:  Ensure that the rear shelf panel (1) is properly seated in the guides (7).
7	Unclip speaker covers from rear shelf panel (1)
8	Remove paneling on left side of trunk (10) and paneling on right side of trunk (11)		AR68.30-P-4600SXS
9	Remove bolts (12)
10	Remove trim (2)
11	Expose electrical wiring harness for center high-mounted brake lamp (E21) and unclip center high-mounted brake lamp (E21) from paneling (2)
12	Remove roller blind from paneling (2)
13	Install in the reverse order
