Carry out distance and comparative measurements on front and rear axles - AR40.30-P-0402T

MODEL 211, 219

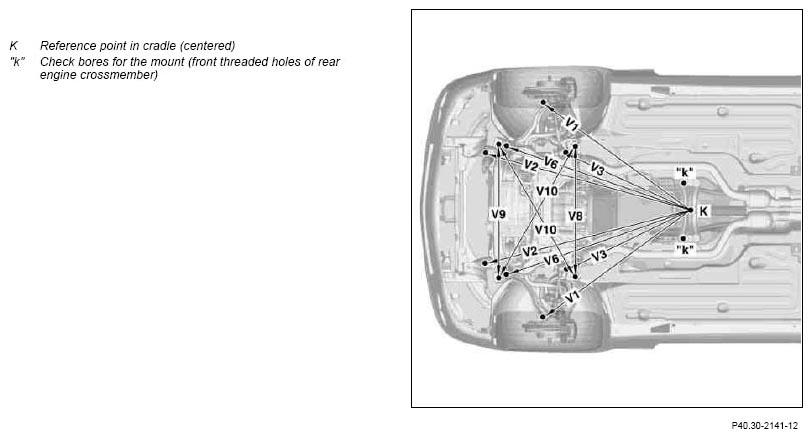

Front axle on model 211 without 4MATIC

Fig 1: Checking Bores For Mount (Front Axle Model 211 Without 4MATIC)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

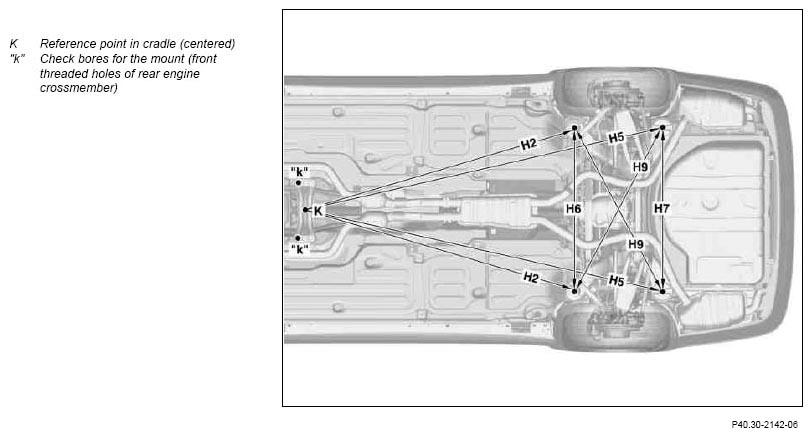

Rear axle on model 211 without 4MATIC

Fig 2: Checking Bores For Mount (Rear Axle Model 211 With 4MATIC)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Measure
1	Observe preparation for distance dimension and comparative measurement		AR40.30-P-0401T
2	Carrying out distance and comparative measurements on front axle	In the case of front end damage Depending on the accident damage, further individual measuring points can be defined for a comparative measurement.
		Model 211 except 4MATIC model 219	AR40.30-P-0402-01T
		Check values model 211	*BE40.30-P-1001-06D
		Check values model 219	*BE40.30-P-1001-06E
			Figure
			Figure
			Figure
			Figure
			Figure
		Model 211 with 4MATIC	AR40.30-P-0402-01VM
		Check values	*BE40.30-P-1001-06D
			Figure
			Figure
			Figure
			Figure
			Figure
3	Carry out distance and comparative measurements on rear axle	For rear end damage Depending on the accident damage, further individual measuring points can be defined for a comparative measurement.	AR40.30-P-0402-02T
		Check values model 211	*BE40.30-P-1001-05B
		Check values model 219	*BE40.30-P-1001-05F
			Figure
			Figure
			Figure
			Figure
			Figure

Fig 3: Identifying Telescopic Measuring Rod (124 589 01 19 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Telescopic Measuring Rod (124 589 02 19 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Mount (170 589 00 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Identifying Set Of Measurement Fixtures (168 589 07 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 7: Identifying Connecting Pieces (124 589 08 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
