Carrying out distance and comparative measurements on front axle - AR40.30-P-0402-01T
| 17.8.04 | Dimension V8, V9, V10 changed. | *BE40.30-P-1001-06D |
| Number | Designation | Model 211 except 211.08/09/28/29 | ||
|---|---|---|---|---|
| BE40.30-P-1001-06D | Dimension | V1 | mm | 4 |
| V2 | mm | 4 | ||
| V3 | mm | 3 | ||
| V5 | mm | - | ||
| V6 | mm | 3 | ||
| V7 | mm | - | ||
| V8 | mm | 834 (±2) | ||
| V9 | mm | 856 (±2) | ||
| V10 | mm | 966 (±2) | ||
| See picture | AR40.30-P-0402-01T | |||
| Number | Designation | Model 219 | ||
|---|---|---|---|---|
| BE40.30-P-1001-06E | Dimension | V1 | mm | 4 |
| V2 | mm | 4 | ||
| V3 | mm | 3 | ||
| V5 | mm | - | ||
| V6 | mm | 3 | ||
| V7 | mm | - | ||
| V8 | mm | 834 (±2) | ||
| V9 | mm | 856 (±2) | ||
| V10 | mm | 966 (±2) | ||
| See picture | AR40.30-P-0402-01T | |||
The
measuring set is designed in such a way, that the measuring bolts, according to the measuring points at the vehicle, can be screwed together out of mounting bolts, extensions and measuring tips/bolts.
The configuration of the measuring bolts is shown in the table, where the digits in the column headed "Measuring bolt configuration" are the special tool end numbers.
For example: 02/08/10 =168 589 07 63 02 (support stud)
168 589 07 63 06 (extension)
168 589 07 63 10 (measuring tip)
| Distance and comparative measurement | Measuring bolt configuration | Telescopic measuring rod |
|---|---|---|
| V1 | 02/07/10 | 124 589 02 19 00 |
| V2 | 02/07/07/10 | 124 589 02 19 00 |
| V3 | 02/08 | 124 589 01 19 00 |
| V6 | 02/08/10 | 124 589 02 19 00 |
| V8 | 02/07/05/socket wrench bit | 124 589 01 19 00 |
| V9 | 02/06/05/socket wrench bit | 124 589 01 19 00 |
| V10 | Front: 02/06/07/05/socket wrench bit Rear: 02/07/05/socket wrench bit |
124 589 02 19 00 |

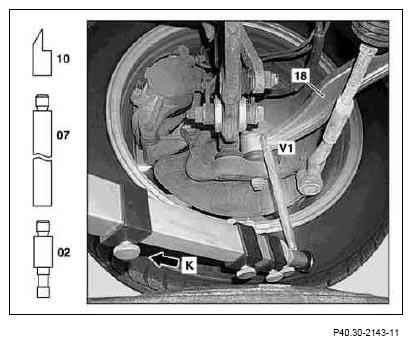

- Measure comparative measurement (V1) from the check point (K) to the cast surface on the torque strut (18). Measure on the left and right side in each case.
In order to assess the effects of accident damage, the bearings on the torque strut and spring control arm must be undamaged. Because of the inaccuracies resulting from the tolerances of the bearings, the dimension (V1) is only partially usable.
Shows on model 211

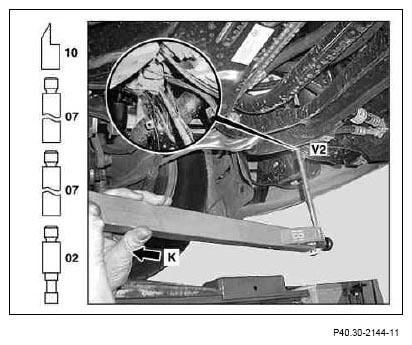

- Measure comparative measurement (V2) from the check point (K) to the longitudinal member of the body. Measure on the left and right side in each case.
This measurement is a reference dimension for the body.
Shows on model 211
Fig 7: Measuring Comparative Measurement From Check Point To Longitudinal Member Of Body (Model 211)Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

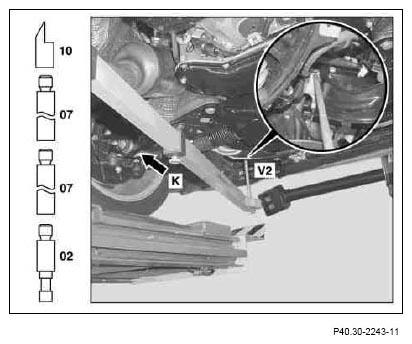

Shows model 219

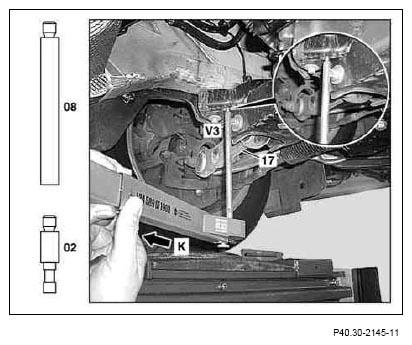

- Measure comparative measurement (V3) from the check point (K) to the centering point of the mounting bolt of the spring control arm on the front axle carrier. Measure on the left and right side in each case.
Shows on model 211

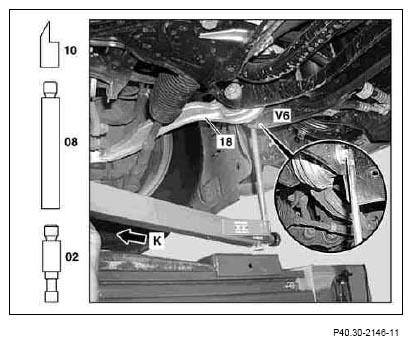

- Measure comparative measurement (V6) from the check point (K) to the centering point of the mounting bolt of the torque strut on the front axle carrier, left to right. Measure on the left and right side in each case.
Shows on model 211

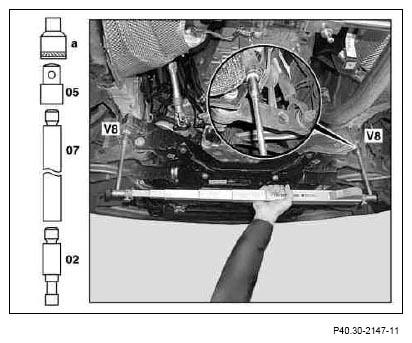

- Measure distance dimension (V8) from the centering point of the Torx bolt heads between the rear bearings of the front axle carrier.
Shows on model 211

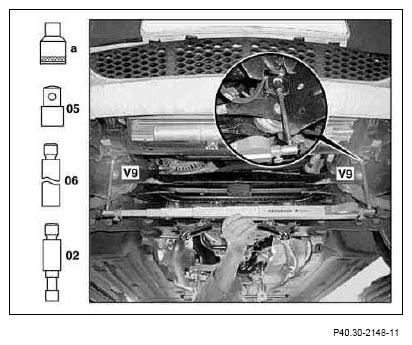

- Measure distance dimension (V9) from the centering point of the Torx bolt heads between the front bearings of the front axle carrier.
Shows on model 211

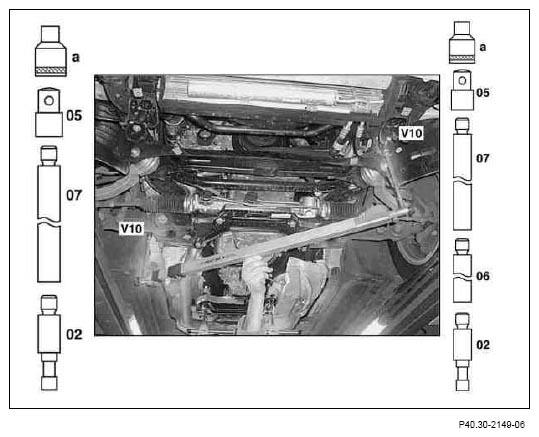

- Measure distance dimension (V10) diagonally from the centering point of the Torx bolt heads between the front and rear mount of the front axle carrier, left to right.
Shown on model 211
