Remove/install rear axle shaft flange and angular ball bearing - AR35.20-P-0130TX
MODEL 219, 211
Shown on model 219
| Removing | |||
| Risk of injury caused by body parts being jammed or crushed. Risk of injury to skin and eyes caused by brake fluid spraying out at high pressure when working on the SBC brake system | Deactivate SBC brake system using STAR DIAGNOSIS. | AS42.46-Z-0001-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Deactivate SBC brake system using STAR DIAGNOSIS. | On vehicles with SBC brake system. The following steps should be run through in STAR DIAGNOSIS: Select menu item "SBC Sensotronic Brake Control"/"Deactivate 'SBC' system". Then process all the individual steps from top to bottom. |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 2 | Raise vehicle with vehicle lift | Model 211 | AR00.60-P-1000T |
| Model 219 | AR00.60-P-1000TX | ||
| 3 | Remove rear wheel | ||
| Remove/install wheels | Model 211 | AP40.10-P-4050Z | |
| Model 219 | AP40.10-P-4050TX | ||

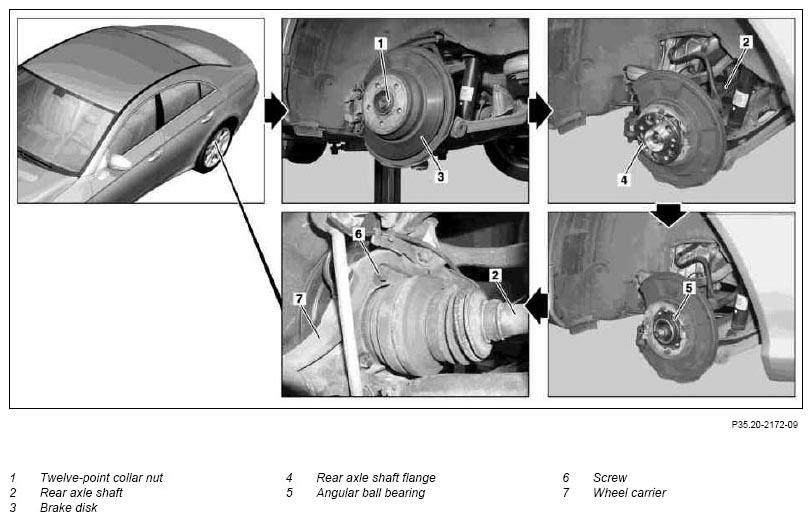

| 4 | Detach twelve-point collar nut (1) from rear axle shaft (2) | Model 211 | AR35.30-P-0115-01A |
| Model 219 | AR35.30-P-0115-01TX | ||
| 5 | Remove brake disk (3) | Model 211 | AR42.10-P-0220R |
| Model 219 | AR42.10-P-0220TX | ||
| 6 | Remove brake shoe retaining springs | See: ↓ Remove parking-brake brake shoes: |
|
| Model 211 | AR42.20-P-0530T | ||
| Model 219 | AR42.20-P-0530TX | ||
| 7 | Pull rear axle shaft flange (4) out of angular contact ball bearing (5) using |
AR35.20-P-0130-06TX | |
| Fig 3 | |||
| Figure | |||
| 8 | Remove bolt (6) and remove angular contact ball bearing (5) from wheel carrier (7) | ||
| 9 | Clean water drain in wheel carrier (7) | AR35.20-P-0115-03CW | |
| 10 | Pull bearing inner race off the rear axle shaft flange (4) | AR35.20-P-0130-02TX | |
| Fig 4 | |||
| Fig 5 | |||
| Fig 6 | |||
| Install | |||
| 11 | Mount angular contact ball bearing (5) on wheel carrier (7) | ||
| *BA35.20-P-1001-06A | |||
| *BA35.20-P-1001-06C | |||
| 12 | Pull rear axle shaft flange (4) into angular contact ball bearing (5) | AR35.20-P-0130-07TX | |
| Fig 7 | |||
| Fig 8 | |||
| 13 | Install brake shoe retaining springs | See: ↓ Install parking-brake brake shoes: |
|
| Model 211 | AR42.20-P-0530T | ||
| Model 219 | AR42.20-P-0530TX | ||
| 14 | Install brake disk (3) | Model 211 | AR42.10-P-0220R |
| Model 219 | AR42.10-P-0220TX | ||
| 15 | Mount and secure twelve-point collar nut (1) on rear axle shaft (2) | ||
| Model 211 | AR35.30-P-0115-01A | ||
| Model 219 | AR35.30-P-0115-01TX | ||
| *BA35.30-P-1001-01F | |||
| 16 | Attach rear wheel | ||
| Remove/install wheels | Model 211 | AP40.10-P-4050Z | |
| Model 219 | AP40.10-P-4050TX | ||
| 17 | Activate SBC brake system using STAR DIAGNOSIS | On vehicles with SBC brake system. The following steps should be run through in STAR DIAGNOSIS: Select "Initial startup after repair"/"Remove/install brake pads" menu item. Then process all the individual steps from top to bottom. |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
HUB
| Number | Designation | Model 211 | |
|---|---|---|---|
| BA35.20-P-1001-06A | Wheel bearing to wheel carrier | Nm | 80 |
HUB
| Number | Designation | Model 219 | |
|---|---|---|---|
| BA35.20-P-1001-06C | Wheel bearing to wheel carrier | Nm | 80 |
REAR AXLE SHAFT
| Number | Designation | Model 211 | Model 219 | |||
|---|---|---|---|---|---|---|
| BA35.30-P-1001-01F | Collar nut, rear axle shaft to rear axle shaft flange | self-locking | Nm | 350 | 350 | |
| not self-locking | Stage 1 | Nm | 170 | 170 | ||
| Stage 2 | ∠° | 45 | 45 | |||
