Remove/install follower joint of steering knuckle bearing - AR33.20-P-0427TX
MODEL 211 (except 211.08 /09 /28 /29)
MODEL 219, 230
MODEL 230 except CODE (P99) "AMG Black Series" special model
MODIFICATION NOTES
| 9.8.08 | SWZ 140 589 00 33 00 for prying off upper ball joint added | Step 3 | AR33.20-P-0500-01N |
| Remove/install | |||
| 1 | Remove front wheel | ||
| Remove/install wheels | Model 219 | AP40.10-P-4050TX | |
| Model 211, 230 | AP40.10-P-4050Z | ||
| 2 | Pry follower joint (8) off steering knuckle | Model 219 | AR33.20-P-0500-01TX |
| *BA33.20-P-1008-01K | |||
| Model 211, 230 | AR33.20-P-0500-01N | ||
| *BA33.20-P-1018-01A | |||
| *BA33.20-P-1009-01K | |||

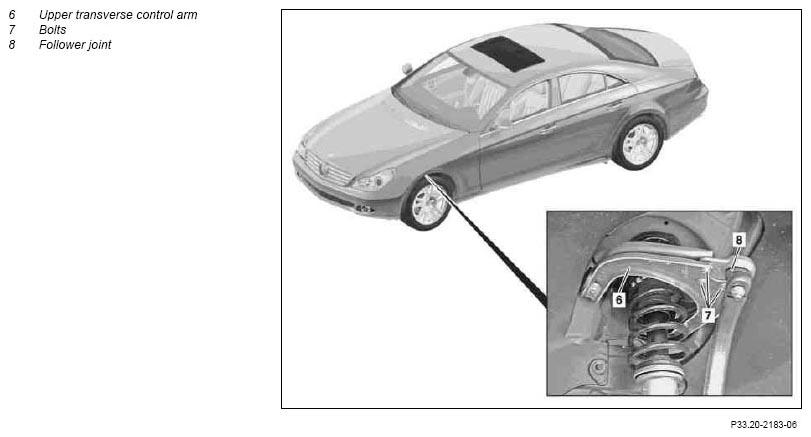

| Figure | |||
| Figure | |||
| Figure | |||
| 3 | Remove bolts (7) | *BA33.20-P-1009-01K | |
| *BA33.20-P-1019-01A | |||
| 4 | Remove follower joint (8) from upper transverse control arm (6) | ||
| 5 | Install in the reverse order |
WHEEL LOCATION, HUB
| Number | Designation | Model 211 except 211.08/09/28/29 | Model 230 except code P99 | ||
|---|---|---|---|---|---|
| BA33.20-P-1019-01A | Nut, follower joint to upper transverse control arm | Stage 1 | Nm | 20 | 20 |
| Stage 2 | ∠° | 45 | 45 | ||
WHEEL LOCATION, HUB
| Number | Designation | Model 219.3 | ||
|---|---|---|---|---|
| BA33.20-P-1009-01K | Nut, follower joint to upper transverse control arm | Stage 1 | Nm | 20 |
| Stage 2 | ∠° | 45 | ||
WHEEL LOCATION, HUB
| Number | Designation | Model 211 except 211.08/09/28/29 | Model 230 except code P99 | ||
|---|---|---|---|---|---|
| BA33.20-P-1018-01A | Self-locking nut, upper wishbone follower joint to steering knuckle | Stage 1 | Nm | 20 | 20 |
| Stage 2 | ∠° | 90 | 90 | ||
WHEEL LOCATION, HUB
| Number | Designation | Model 219.3 | ||
|---|---|---|---|---|
| BA33.20-P-1008-01K | Self-locking nut, upper wishbone follower joint to steering knuckle | Stage 1 | Nm | 20 |
| Stage 2 | ∠° | 90 | ||
