Separate rear wall - AR64.10-P-5746-01T

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1004-20A	Hot-air gun

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A

Drill (electric/pneumatic)

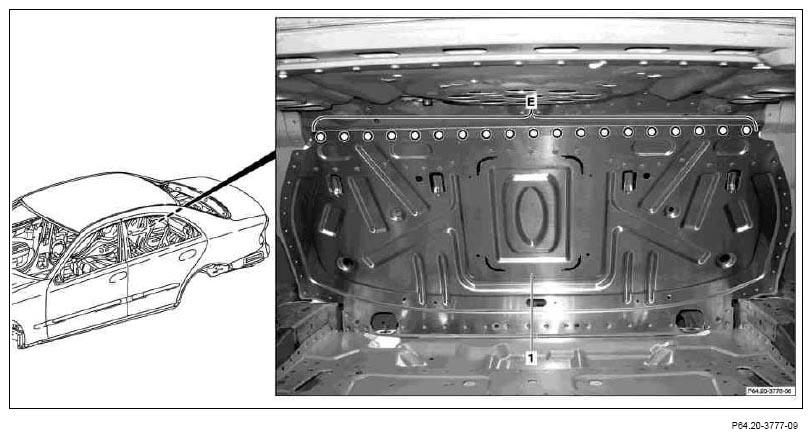

Fig 1: Locating Holes (Area E)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Drill dia. 5 mm holes (area E).

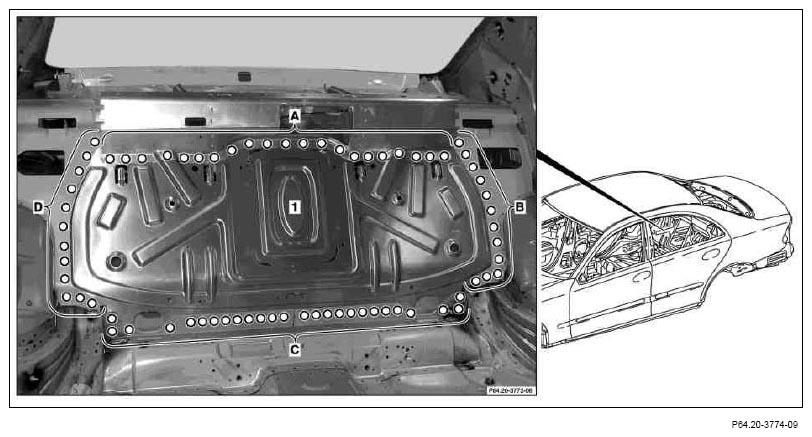

   Fig 2: Locating Holes (Areas A, B, C And D)

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
2. Drill dia. 5 mm holes (areas A, B, C and D).

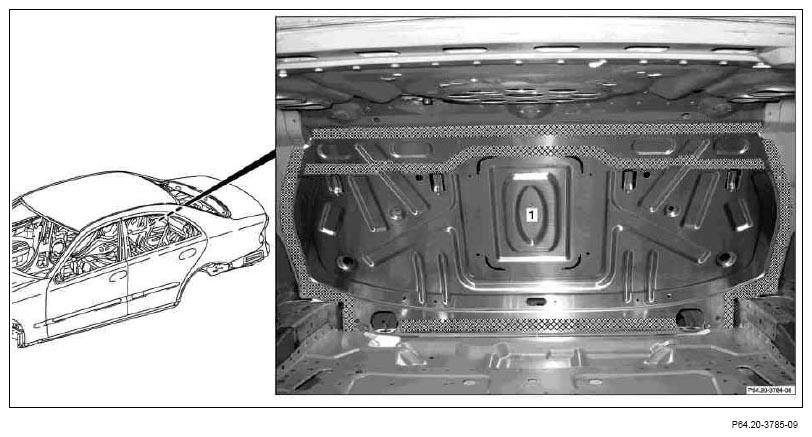

   Fig 3: Identifying Rear Wall Shaded Areas

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. Heat rear wall (1) in shaded areas
4. Remove rear wall (1)

   Shaded areas are glued
