Install rear wall - AR64.10-P-5746-03T

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1092-02A	Adhesive kit, body, 2-component adhesive	A 009 989 36 71
BR00.45-Z-1001-13A	Blind rivet 6.4x14	A 003 990 35 97

Fig 1: Locating Holes (Area E)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Remove gluing residues (area E).

Fig 2: Locating Holes (Areas A, B, C And D)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Remove gluing residues (areas A, B, C and D).
Install rear wall (1) and fasten with clamping pliers .
Drill dia. 6.5 mm holes for manual temporary fasteners and fasten in rear wall (1) (areas A, B, C and D).
Fasten rear wall (1) with manual temporary fasteners .
Drill remaining holes with dia. 6.5 mm bit (areas A, B, C and D).

Fig 3: Locating Holes (Area E)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Drill dia. 6.5 mm rivet holes (area E).
Remove rear wall (1) and deburr rivet holes on both sides (areas A, B, C, D and E).
Remove grinding and drilling chips using wet/dry vacuum cleaner.
Apply DP 490 2-component adhesive to rear wall (1).
Observe preliminary treatment of surfaces to be bonded.

Refer to the manufacturer's information for the curing and working times of the adhesive.
Install rear wall (1) and fasten with manual temporary fasteners .

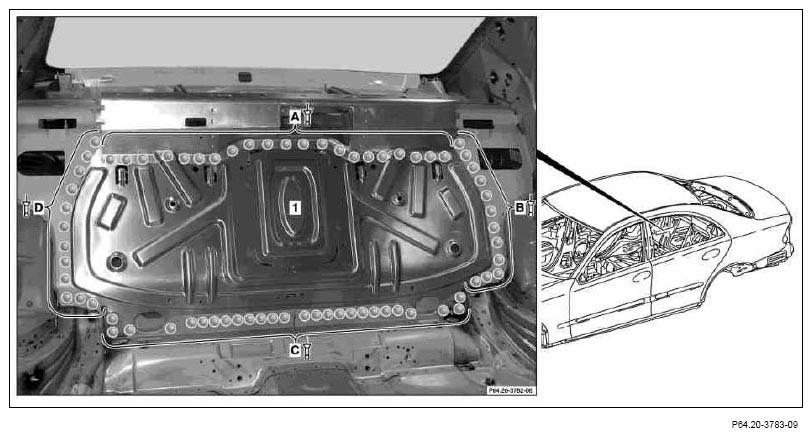

Fig 4: View Of Riveted Rear Wall (Areas A, B, C And D)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Rivet rear wall (1) with Polygrip aluminum/steel flat head rivet, dia. 6.4x14 (areas A, B, C and D).

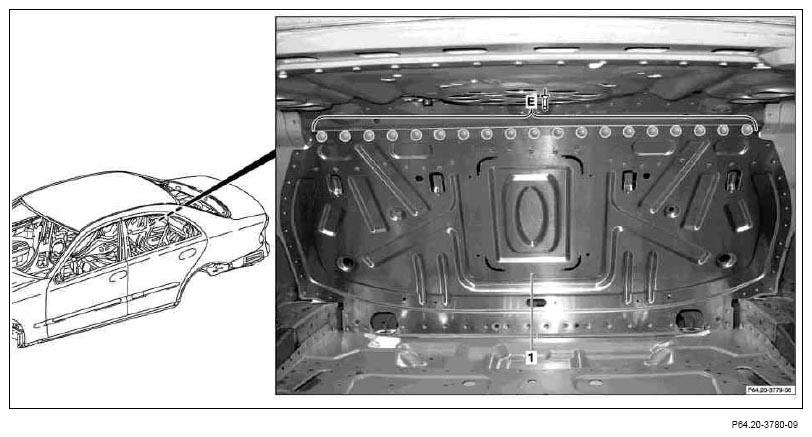

Fig 5: View Of Riveted Rear Wall (Area E)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Rivet rear wall (1) with Polygrip aluminum/steel flat head rivet, dia. 6.4x14 (area E).
