Remove/install crank window in front door - AR72.10-P-1900T

MODEL 211.0/2/6

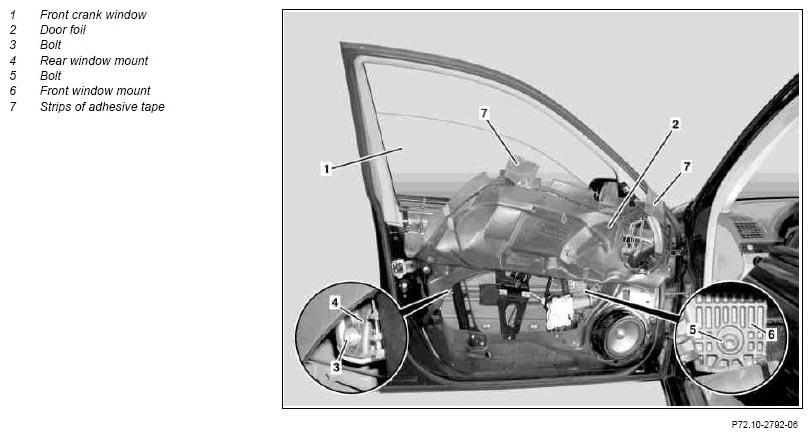

Fig 1: Identifying Front Door Crank Window Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
	Risk of injury  due to hands being crushed when window glass is not secure	Secure window to prevent it from falling down.	AS67.00-Z-0002-01A
1	Remove inner sealing rail		AR72.10-P-1600T
2	Remove front door power window switch group		AR72.29-P-0110T
3	Remove door foil (2) from front door	Only remove door foil (2) until access cover in inner door panel is accessible. Secure detached door foil section (2) against folding down with strips of adhesive tape (7).	AR72.10-P-1010T
4	Create contacts for switch of power window at front door control unit
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
5	Attach ground line to the vehicle electrical system battery
	Notes on battery		AH54.10-P-0001-01A
6	Move front crank window (1) to assembly position	Until bolts (3, 5) are accessible.
7	Loosen bolts (3) from rear window mount (4)	Do not unscrew bolt (3) completely
8	Loosen bolt (5) on front window mount (6)	Do not unscrew bolt (5) completely
9	Raise front crank window (1) at rear and remove upward out of the door
	Install
10	Insert front crank window (1) into shaft	Front crank window (1) should make contact on the front window mount (6) and rear window mount (4) and must be installed in both window guide rails.
11	Tighten bolt (5) on front window mount (6)	Tighten bolt (5) so that front crank window (1) can still be moved
12	Tighten bolt (3) on rear window mount (4)	Tighten bolt (3) so that front crank window (1) can still be moved
13	Install inner sealing rail	Do not install door lining.	AR72.10-P-1600T
14	Move front crank window (1) upward to stop	Thereby, fastening front crank window (1)
15	Move front crank window (1) to assembly position	Until bolts (3, 5) are accessible.
16	Tighten bolts (3, 5).		*BA72.10-P-1009-01AB
17	Completely move front crank window (1) downward
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
18	Detach ground line at the vehicle electrical system battery
	Notes on battery		AH54.10-P-0001-01A
19	Disconnect switch of power window at front door control unit
20	Install door foil (2) on front door		AR72.10-P-1010T
21	Install front door power window switch group		AR72.29-P-0110T
22	Perform function check

FRONT DOOR

Number	Designation		Model 211
BA72.10-P-1009-01AB	Bolt, window to front window lifter	Nm	8
