manual raising/lowering of power windows, function - GF72.29-P-3006T
MODEL 211.0/2/6
Function prerequisites
- No overvoltage or undervoltage
- Circuit 15 or circuit 15R ON
Function

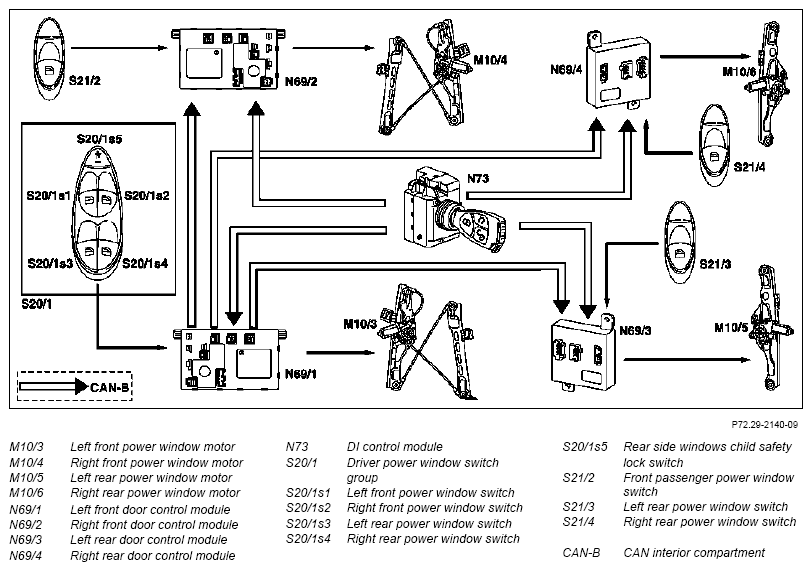

The manual raising/lowering function is triggered by pulling or pushing a power window switch in the "open" or "close" direction up to the first detent point.
The left front door control module (N69/1), right front (N69/2), left rear (N69/3) o right rear (N69/4) then actuate the corresponding left front power window motor (m10/3), right front (m10/4), left rear (m10/5) or right rear (m10/6) in the "Open" or "Close" direction as long as the corresponding switch is actuated or the window is completely opened or closed.
Function abort
- Function requirements are not satisfied
- An obstruction is detected
- Activation time exceeded t>25 s
manual raising
The "manual raising" button function effects window movement without excessive force limitation (obstruction sensor).
The "manual raising" function is performed for as long as an actuation of the corresponding operating switch is detected. When actuation is no longer detected, the window adjustment is immediately aborted.
manual lowering
The "manual opening" feature rolls down the window excessive force limitation
The "manual lowering" function is performed for as long as an actuation of the corresponding operating switch is detected. When actuation is no longer detected, the window adjustment is immediately aborted.
The function can be performed without normalization.
The function is also possible without any restrictions in the event of an incorrect rotation direction or a defective Hall sensor.
On model 211.6, the number of the electrical components can vary depending on the equipment and special body.
| Rear door power window switch, location/task/design/function | GF72.29-P-4104T |
| Front power window motor, location/function | GF72.29-P-4108T |
| Rear power window motor, location/function | GF72.29-P-4109T |
| Driver-side power window switch group, location/task/design/function | GF72.29-P-4112T |
| Left front door control module, location/task | GF72.29-P-4115T |
| Right front door control module, location/task | GF72.29-P-4116T |
| Rear door control module, location/task/function | GF72.29-P-4117T |
