Driver-side power window switch group, location/task/design/function - GF72.29-P-4112T

MODEL 211.0/2/6

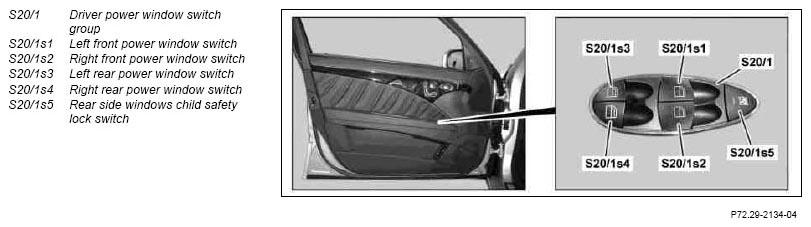

Fig 1: Identifying Driver-Side Power Window Switches
G07505128Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Driver power window switch group, location The driver-side power window switch group (S20/1) is located in the armrest of the driver's door
Driver-side power window switch group, task   GF72.29-P-4112-03T
Driver-side power window switch group, design The power window switch in the driver-side power window group (S20/1) is designed as a rocker switch; the rear side window safety switch (S20/1s5) is a button with two switching states
Driver power window switch group, function   GF72.29-P-4112-02T
