Remove/install tilting/sliding roof frame - AR77.20-P-3000T

MODEL 211.0/2, 240.0 with CODE (414) Power glass tilting/sliding roof

Shown on model 211

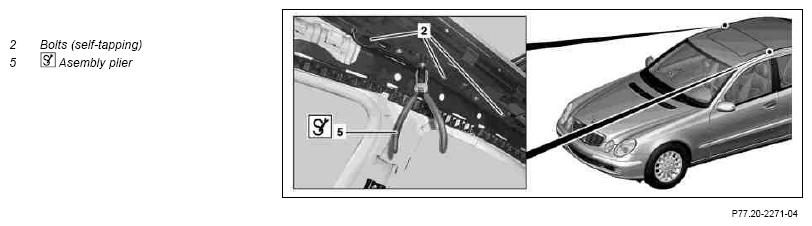

Fig 1: Identifying Tilting/Sliding Roof Frame Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211.0

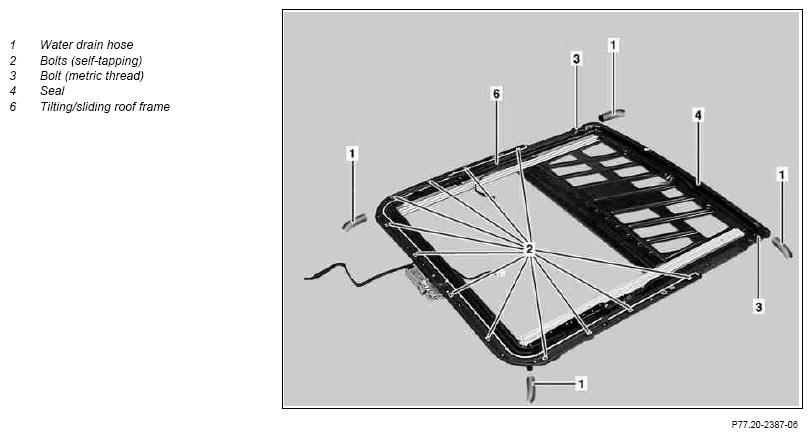

Fig 2: Identifying Tilting/Sliding Roof Frame Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

1.3.06

Repair method completely modified

Steps 1.1 to 12

	Remove/install
1.1	Remove paneling from tilting/sliding roof	When replacing tilting/sliding roof frame (6).	AR77.20-P-0500T
2.1	Remove tilting/sliding roof panel	When replacing tilting/sliding roof frame (6).	AR77.20-P-1000T
3.1	Loosen headliner and lay down on seat backrests with electrical lines connected.	Model 211.0	AR68.30-P-4300TA
		Model 211.2	AR68.30-P-4300TD
4.1	Remove front headliner	Model 240.0	AR68.30-P-7607HA
5.1	Remove rear headliner	Model 240.0	AR68.30-P-7608H
6.1	Disconnect all electrical connectors from roof crossbeam, expose wiring harnesses, disconnect cable tie and remove roof crossbeam.	Model 240.0
7	Remove water drain hoses (1)	Do not damage water drain hoses (1), otherwise damage can be caused by penetrating water.
8	Insert assembly pliers (5) on both sides		Fig 3
9	Unscrew bolts (2, 3)	Installation: Do not mix up screws (2, 3).
			*BA77.20-P-1003-01A
10	Remove tilting/sliding roof frame (6) from vehicle.	Simultaneously remove both assembly pliers (5), otherwise tilting/sliding roof frame (6) can be damaged. Aid of helper required.
		Installation: Replace seal (4).
11	Install in the reverse order
12	Perform teach-in run for sliding roof anti-pinch protection
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A

ELECTRIC SLIDING ROOF

Number	Designation		Model 211	Model 240
BA77.20-P-1003-01A	Bolt to tilting/sliding roof frame	Nm	8	8

Fig 3: Identifying Assembly Pliers (202 589 01 37 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
