Remove/install tilting bracket on tilting/sliding roof - AR77.20-P-1700T

MODEL 211.0/2, 240.0 with CODE (414) Glass electric tilting/sliding roof

MODEL 240.1 with CODE (418) Glass tilting/sliding roof in rear

Shown on model 211.0

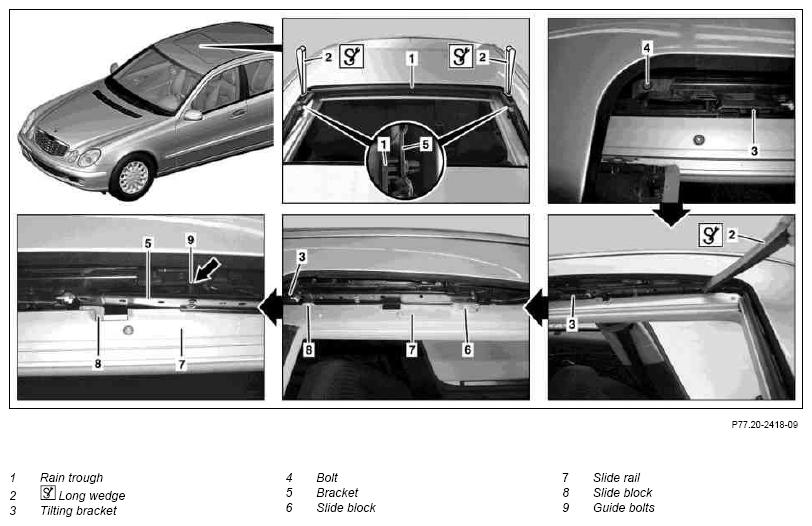

Fig 1: Identifying Tilting/Sliding Roof Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211.0

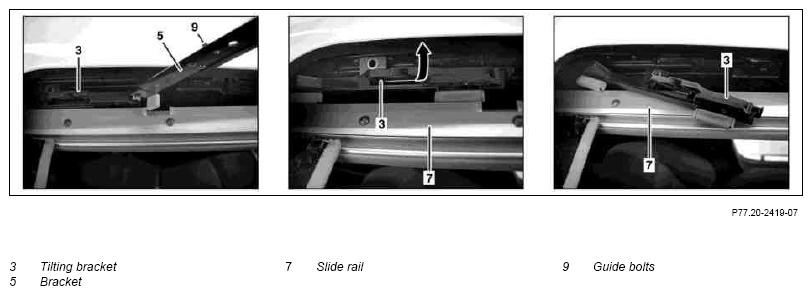

Fig 2: Identifying Tilting/Sliding Roof Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove tilting/sliding roof panel		AR77.20-P-1000T
2	Unclip rain trough (1) with long wedge (2) on left and right bracket (5) and remove*		Figure
3	Actuate tilting/sliding roof switch in closing direction until the tilting/sliding roof drive switches off*
4	Unscrew left or right bolt (4)*	Disconnect cable from tilting bracket(3).*
5	Slide left and right tilting bracket (3) toward rear with long wedge (2) until the slide block (6) can be pried out of the slide rail (7)*		Figure
6	Pry slide block (6) out of slide rail (7) *
7	Push left or right tilting bracket (3) with bracket (5) toward front until slide block (8) is visible in the opening on slide rail (7) *	Guide slide block (6) over slide rail (7) and move guide bolt (9) past wind deflector guide (arrow).*
8	Pivot left or right bracket (5) upward and remove tilting bracket (3) *	Pivot left or right bracket (5) up carefully to prevent guide bolt (9) from damaging paint.*
9	Pivot left or right tilting bracket (3) up parallel to slide rail (7) (arrow)*
10	Install in the reverse order
