Remove/install seal for panoramic front glass roof - AR77.21-P-0540T

MODEL 203.7, 211.0 with CODE (413) Panoramic sliding roof

MODEL 211.0

with CODE (413) Panoramic sliding roof

with CODE (419) Solar module for panoramic roof

Shown on model 211.0

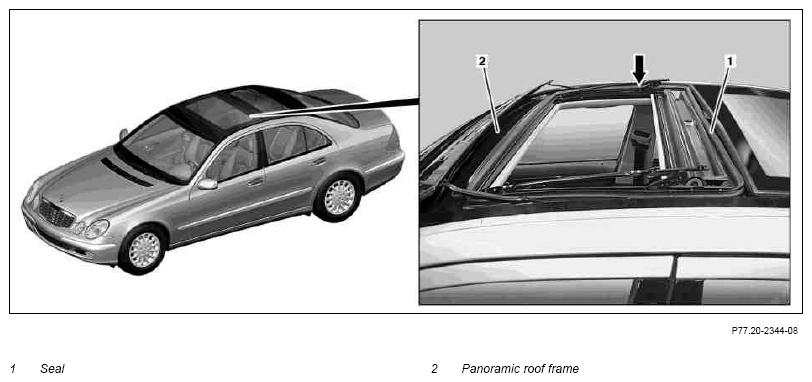

Fig 1: Identifying Panoramic Front Glass Roof Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
1	Remove front glass roof from panoramic roof	Model 203.7	AR77.21-P-0500PB
		Model 211.0	AR77.21-P-0500T
2	Pull off gasket (1)
	Install
3	Remove adhesive residues and clean bonding surfaces on panoramic roof frame (2)		*BR00.45-Z-1025-04A
4	Glue seal (1) to panoramic roof frame (2).	Start with joint of seal (1) on right side (arrow) and press on seal (1) for at least 10 s.
5	Install front glass roof on panoramic roof	Model 203.7	AR77.21-P-0500PB
		Model 211.0	AR77.21-P-0500T
