Tilting/sliding roof convenience closing with recirculated air button, function - GF77.20-P-2017T

MODEL 211.0/2

up to model year 08/YoM 07

with CODE (414) Power glass tilting/sliding roof

MODEL 211.0/2

as of model year 09/YoM 08

with CODE (414) Power glass tilting/sliding roof

except CODE (494) USA version

except CODE (460) Canada version

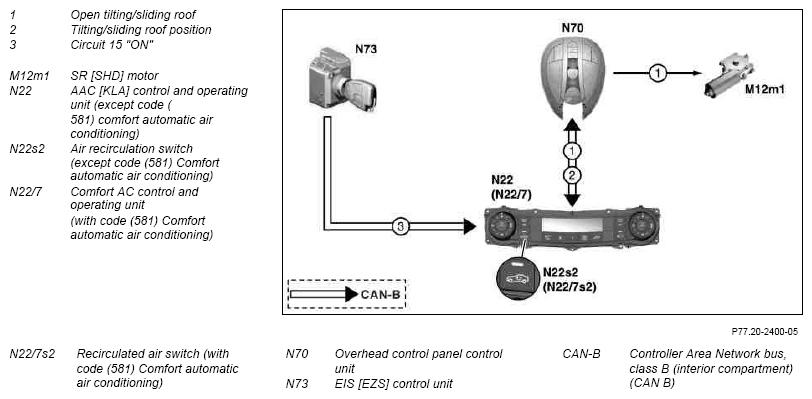

Fig 1: Tilting/Sliding Roof Convenience Closing With Recirculated Air Button Communication Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function conditions

Circuit 15 "ON"
Tilting/sliding roof normalized
No undervoltage or overvoltage

Function

The tilting/sliding roof is closed by actuating the air recirculation switch (N22s2) (except code (581) Comfort automatic air conditioning) or air recirculation switch (N22/7s2) (with code (581) Comfort automatic air conditioning). The position last moved to is stored. When the recirculated air mode is completed the sliding roof or power windows move back to this stored position. However, this is only accomplished, when the tilting/sliding roof is not actuated manually during the recirculated air mode.

If an opening operation is started with the recirculated air switch while closing, the SR motor reverses directions immediately. M12m1

Function abort

Denormalization of tilting/sliding roof
Manual actuation of tilting/sliding roof
Blockage detection
Failure of CAN message (CAN = Controller Area Network).
Actuation of excess force limiter

When closing the tilting/sliding roof via the recirculated air switch the windows are also closed and their positions are stored.

Tilting/sliding roof lock-up recognition, function	GF77.20-P-3000T
Tilting/sliding roof obstruction sensor, function	GF77.20-P-3004T
