Convenience opening panorama sliding roof with recirculated air button, function - GF77.20-P-2018T

MODEL 211.0

up to model year 08/YoM 07

with CODE (413) Panoramic sliding roof

MODEL 211.0

as of model year 09/YoM 08

with CODE (413) Panoramic sliding roof

except CODE (494) USA version

except CODE (460) Canada version

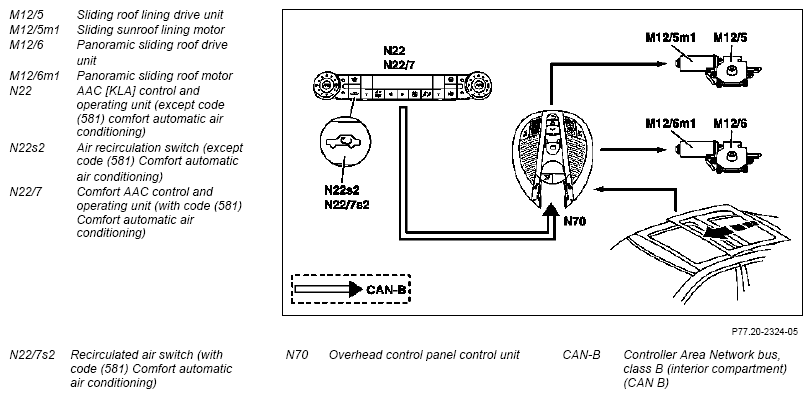

Fig 1: Convenience Opening Panorama Sliding Roof With Recirculated Air Button Communication Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function requirements

Circuit 15R or 15 ON
Roller sun blind retracted
Panoramic sliding sunroof normalized

Open panorama sliding roof via recirculated air button

The panorama sliding roof opening function with recirculated air button is executed only when it was previously closed with the recirculated air function.

When actuating the air recirculation switch (N22s2) am AAC [KLA] control and operating unit (N22) (except code (581) Comfort automatic air conditioning) or the air recirculation switch (N22/7s2) on the comfort AAC control and operating unit (N22/7) (with code (581) Comfort automatic air conditioning), the panoramic sliding roof is actuated in the opening direction until the previously stored position is reached.

If "Closing" via the air recirculation switch is initiated again during the "Opening" sequence before the stored position is reached, then the initially stored opening position is retained.

Interruption of sequence

Intermediate manual actuation
Blockage detection
Actuation request is rescinded
Failure of CAN message (CAN = Controller Area Network).

When the panoramic sliding roof is opened via the recirculated air switch, the windows are also opened to the previously stored position.

Panorama sliding roof convenience opening, function	GF77.20-P-2010T
Panorama sliding roof convenience opening with recirculated air button, function	GF77.20-P-2019T
Panorama sliding roof lock-up recognition, function	GF77.20-P-3007T
Panorama sliding roof position measurement, function	GF77.20-P-3008T
