Remove/install power window in front door - AR72.10-P-1800T

MODEL 211.0/2/6

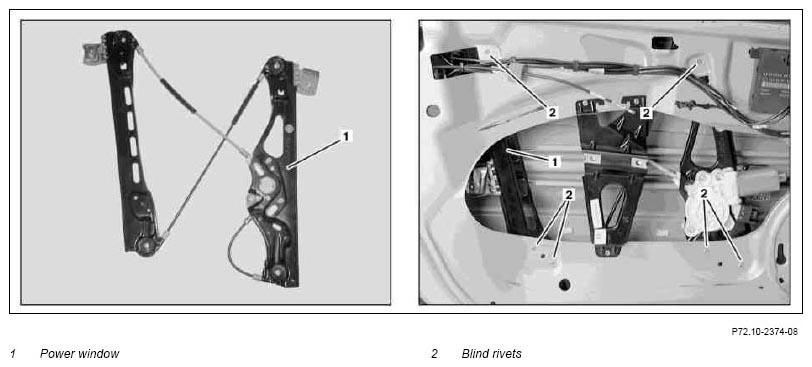

Fig 1: Removing/Installing Front Door Power Window

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove crank window on front door	Do not remove crank window out of the front door, instead secure in the uppermost position using a mounting wedge to prevent from falling down.	AR72.10-P-1900T
			Figure
2	Remove power window motor in front door		AR72.29-P-1860T
3	Drill out blind rivets (2) or cut off	Remove rivet residue and chips from door, otherwise there is a risk of rusting.
4	Unhook power window (1) from inner door panel and remove through access cover in inner door panel
5	Install in the reverse order
6	Normalize power window	See Operating Instructions
7	Perform function check

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
