Remove/install paneling on rear door lining - AR72.12-P-1022T

MODEL 211.0/2

Shown on model 211.0

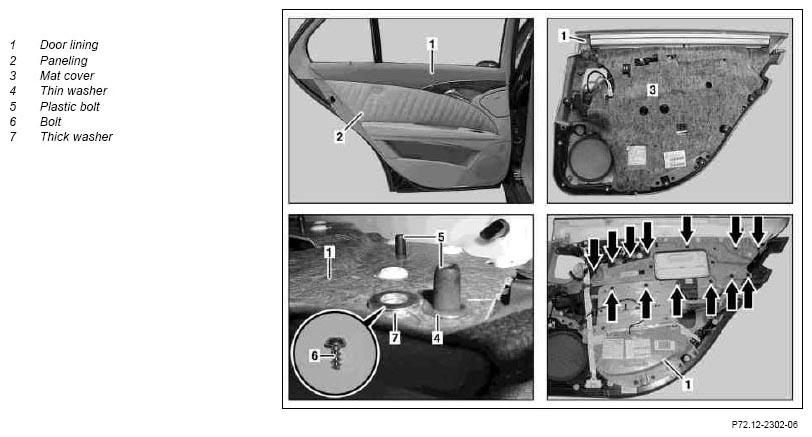

Fig 1: Identifying Rear Door Lining Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
1	Remove door lining (1) from rear door	AR72.12-P-1010T
2.1	Remove mat cover (3)	Only on vehicles with code (413) Panoramic sliding roof or Code (414a) Electric glass tilting/sliding roof or Code (954a) Avantgarde or Code (955a) Elegance	AR72.12-P-1040-01T
3	Separate plastic bonding nubs (arrows) from paneling (2)	Do not operate at excessive speed because the plastic becomes too hot, melts and galls the saw blade	*WH58.30-Z-1003-20A
			*WH58.30-Z-1005-34A
			*WH58.30-Z-1006-34A
4	Remove paneling (2)	Paneling (2) must be replaced
	Install
5	Install paneling (2)
6	Install thin washers (4) as spacer on plastic bolts (5)
7	Cut off plastic bolts (5)	Support paneling (2) with suitable subsurface and press assembly together in area of plastic bolts (5). Otherwise the plastic bolts (5) are not cut to the correct length and the components are too loose. Cut plastic bolts (5) off directly above the thin washer (4).	*WH58.30-Z-1003-20A
			*WH58.30-Z-1005-34A
			*WH58.30-Z-1006-34A
8	Screw bolts (6) with thicker washers (7) into cut plastic bolts (5)	Ensure that thick washers (7) seat correctly
9.1	Install mat cover (3)	Only on vehicles with code (413) Panoramic sliding roof or Code (414a) Electric glass tilting/sliding roof or Code (954a) Avantgarde or Code (955a) Elegance	AR72.12-P-1040-01T
10	Install door lining (1) on front door		AR72.12-P-1010T

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1003-20A	Multicutter
WH58.30-Z-1005-34A	Saw blade, dia. 63 mm (pack of 2)
WH58.30-Z-1006-34A	Screw (only required for multicutter)
