Remove/install mat cover on rear door lining - AR72.12-P-1040-01T

Detaching

Shown on door lining with sun shade, model 211.0

1. Carefully loosen mat cover (1).

   Mat cover (1) must be loosened carefully so that ribbon cable (2) cannot be damaged.

   Remove glue residues from door lining (3) if used again.

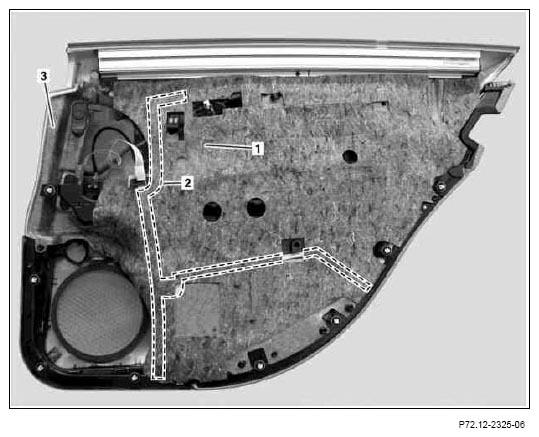

   Fig 1: Identifying Mat Cover, Ribbon Cable And Door Lining

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Attach

   Shown on door lining with sun shade, model 211.0

1. 2.1 Remove cutout for sidebag (6).

   Only on vehicles with code (293) Sidebag in left and right rear

2. 3 Remove protective foil from adhesive surface, align mat cover (1) above door lining (3) and glue on.

   When gluing down the cover mat (1) press down over the full surface to eliminate draft.

   The plastic bonding nubs (4) and the door opener (5) must be exposed and must not be glued over with the mat cover (1).

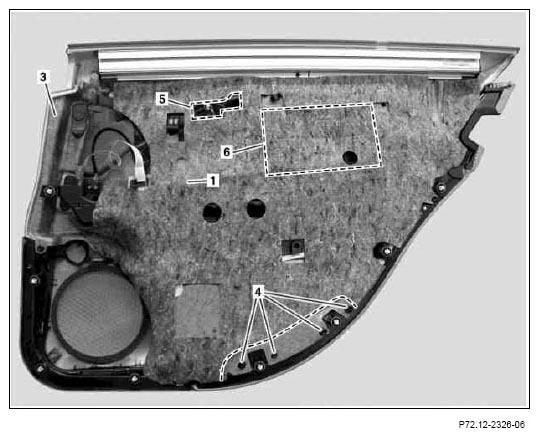

   Fig 2: Identifying Sidebag, Door Lining, Door Opener, Sidebag Cutout And Mat Cover

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
