Remove/install fixed window in rear door - AR72.12-P-1970T

MODEL 211.0

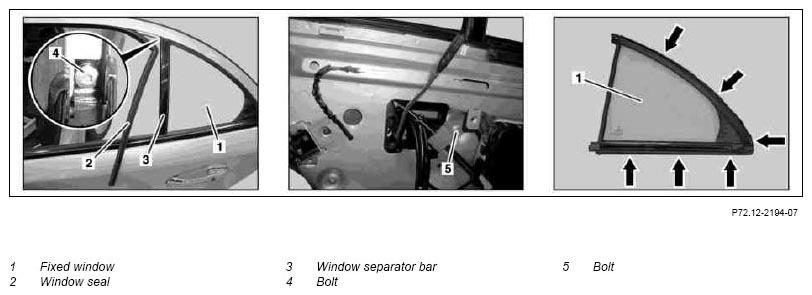

Fig 1: Identifying Rear Door Fixed Window Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on left rear door

	Remove/Install
1	Completely open crank window
2	Remove outer sealing rail on rear door		AR72.12-P-1014T
3	Remove inner sealing rail on rear door		AR72.12-P-1013T
4	Remove door foil from rear door	Remove door foil only until bolt (5) is accessible. Do not remove left rear door control unit and right rear door control unit	AR72.12-P-0105T
5	Remove window seal (2) from window separator bar (3)	Installation:  Use lubricant.	*BR00.45-Z-1010-06A
6	Unscrew bolt (4)
7	Unscrew bolt (5).		*BA72.12-P-1014-01A
8	Withdraw window separator bar (3) from rear door	For this purpose, rotate window separator bar (3).
9	Pull stationary window (1) out of rear door toward front	Installation:  Apply lubricant to seal (arrows) of stationary window (1)	*BR00.45-Z-1010-06A
10	Install in the reverse order

REAR DOOR

Number	Designation		Model 211
BA72.12-P-1014-01A	Bolt, corner window separator bar to inner door panel	Nm	7

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
