Remove/install inner sealing rail on rear door - AR72.12-P-1013T

MODEL 211.0/2

Shown on model 211.0

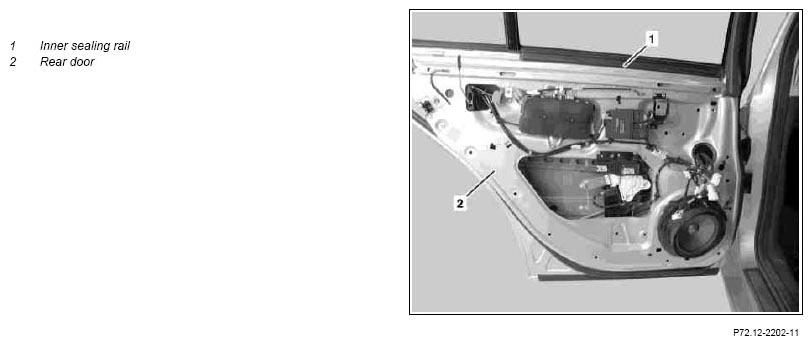

Fig 1: Identifying Rear Door Inner Sealing Rail

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove door lining on rear door	On vehicles except code (Z04) Light armoring	AR72.12-P-1010T
		On model 211.065/070 with code (Z04) Light armoring	AR72.12-P-1010TG
2	Unclip inner sealing rail (1) from rear door (1) with mounting wedge	Installation:  Inner sealing rail (1) should make complete contact on inner door panel	Figure
3	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
