Assemble/disassemble door lining in rear door - AR72.12-P-1040T

MODEL 211.0/2

Replacing door lining

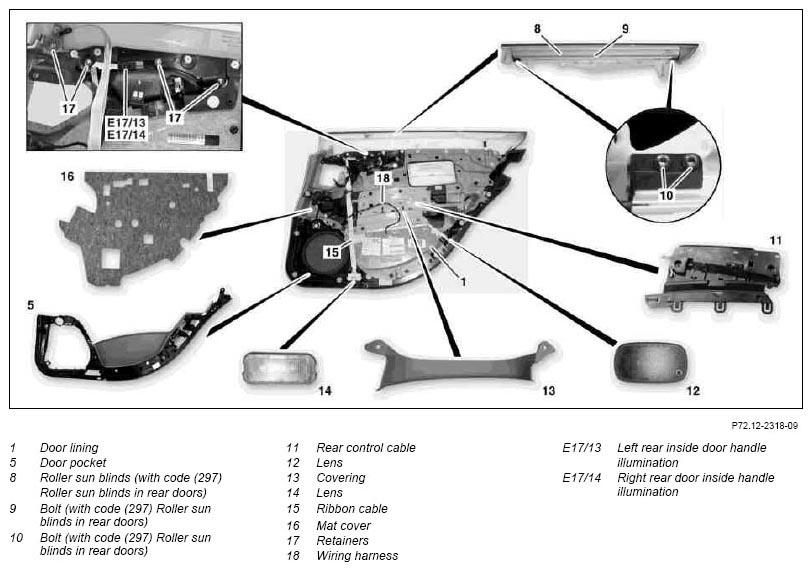

Fig 1: Identifying Rear Door Lining Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

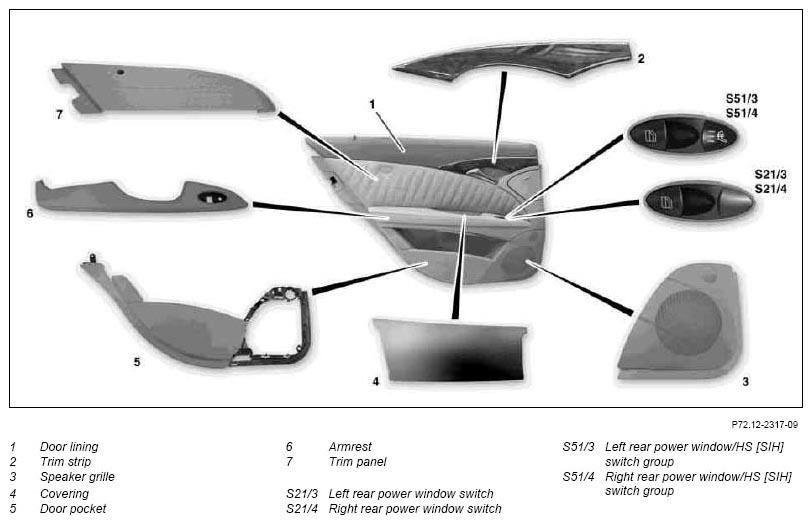

Fig 2: Identifying Rear Door Lining Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Disassemble
1	Remove left or right door lining (1)		AR72.12-P-1010T
2	Remove armrest (6) from left or right door lining (1)		AR72.12-P-1020T
3	Remove retainers (17) and remove trim strip (2) from left or right door lining (1)
4	Remove left inner door handle illumination (E17/13) or right inner door handle illumination (E17/14)	Mounting wedge	Figure
5	Remove lenses (12, 14) from left or right door pocket (5)
6	Remove left or right tweeter		AR82.62-P-7874T
7	Remove ribbon cable (15)
8	Remove wiring harness (18)
9.1	Unscrew bolts (9, 10) and remove roller sun blinds (8)	On vehicles with code (297) Roller sun blinds in rear doors
	Assemble
10.1	Install roller sun blinds (8) on left or right door lining (1) and screw in bolts (9, 10)	On vehicles with code (297) Roller sun blinds in rear doors
11	Install trim strip (2) on left or right door lining (1), install retainers (17)	Replace damaged retainers (17).
12	Install paneling (7) on left or right door lining (1)		AR72.12-P-1022T
13	Install new door pocket (5) on left or right door lining (1)	Transfer bolts and clips from old door pocket (5)	AR72.12-P-1021T
14	Install wiring harness (18)
15	Install ribbon cable (15)
16	Install left or right tweeter		AR82.62-P-7874T
17	Install lenses (12, 14) on left or right door pocket (5)
18	Install left inner door handle illumination (E17/13) or right inner door handle illumination (E17/14)
19	Install armrest (6) on left or right door lining (1)		AR72.12-P-1020T
20	Install left or right door lining (1)		AR72.12-P-1010T

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
