Remove/install lock for glove compartment lid - AR68.10-P-5001T

MODEL 211.0/2/6

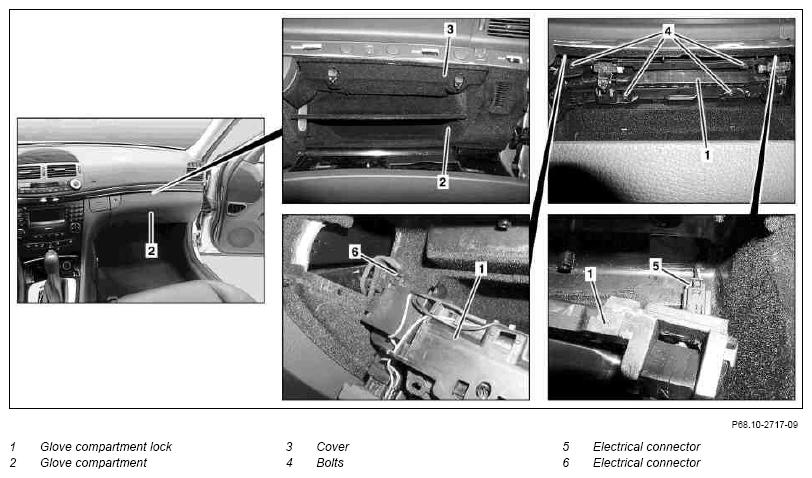

Fig 1: Identifying Glove Compartment Lid Lock Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

8.1.04

Disconnect/connect/remove ground lead from battery

	Remove/Install
1	Open glove compartment (2)	See Operating Instructions
2	Unclip cover (3) using long wedge and remove out of glove compartment (2)		Figure
3	Remove bolts (4)
4	Remove glove compartment lock (1) out of glove compartment (2) until electrical connectors (5, 6) are accessible
5	Disconnect electrical connectors (5, 6) and remove glove compartment lock (1)
6	Install in the reverse order
7	Check adjustment of glove compartment lid, adjust glove compartment lid if necessary		AR68.10-P-1300T

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
