Adjust glove compartment lid - AR68.10-P-1300T

MODEL 211.0/2/6

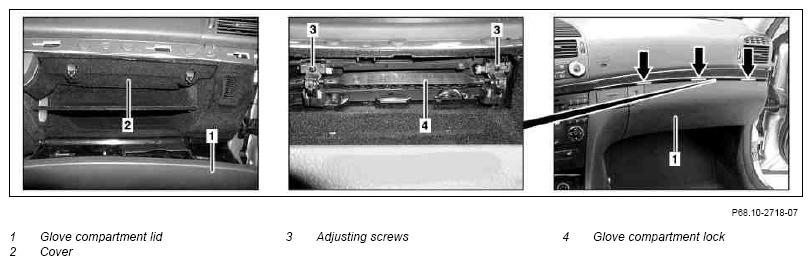

Fig 1: Identifying Glove Compartment Lid, Adjusting Screws, Glove Compartment Lock And Cover

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Adjust
1	Open glove compartment.
2	Unclip cover (2) with long wedge and remove glove compartment.		Figure
3	Make adjustment at the adjusting screws (3) on the glove compartment lock (4)	Glove compartment cover (1) should easily lock in glove compartment lock (4). The glove compartment lid (1) must not have any play when closed. Ensure uniform gap width (arrows).
4	Install cover (2) in the glove compartment

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
