Remove/install floor covering in rear - AR68.20-P-4800T
MODEL 211.0/2
Shown on left side of vehicle, model 211.0 with code (287a) Through-loading feature
Shown on left side of vehicle, model 211.0 with code (287a) Through-loading feature
| Remove/Install | |||
|---|---|---|---|
| 1 | Remove front seat | AR91.10-P-1000T | |
| 2.1 | Remove rear seat cushion | Model 211.0 without code (287a) Through-loading feature | AR91.12-P-1020T |
| 2.2 | Remove rear seat cushion pivot bearing | Model 211.0 with code (287a) Through-loading facility | AR91.12-P-1770T |
| Model 211.2 | AR91.12-P-1770TA | ||
| 3 | Remove stowage box | AR68.20-P-2320T | |

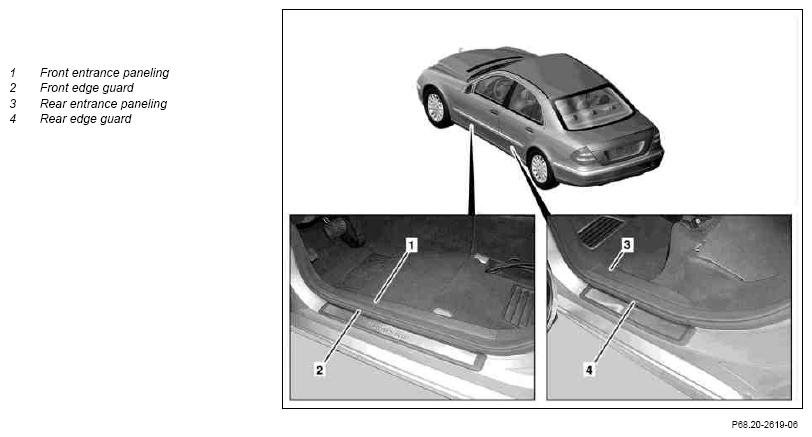

| 4 | Remove front edge guard (2) from both sides of vehicle in area of front scuff plate (1). | ||
| 5 | Remove front scuff plate (1) from both sides of vehicle. | ||
| 6 | Remove rear edge guard (4) from both sides of vehicle in area of rear scuff plate (3). | ||
| 7 | Remove rear scuff plate (3) from both sides of vehicle. | ||
| 8.1 | Unclip load anchor cover (8) from both sides of vehicle, unscrew bolt and remove load anchor (8). | Only on model 211.2 and on model 211.0 with code (287a) Through-loading feature | |

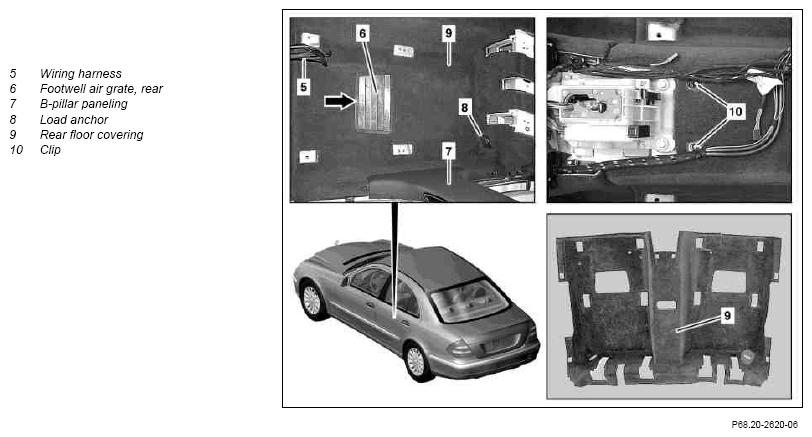

| 9 | Unclip left and right rear footwell air grate (6) (arrow) and remove | ||
| 10 | Unclip clips (10) on center tunnel and lay electric wiring harness down to side. | ||
| 11 | Pull rear floor covering (9) out below left and right B-pillar paneling (7). | ||
| 12 | Move electric wiring harness (5) for driver and passenger seat adjustment out of rear floor covering (9) | ||
| 13 | Remove rear floor covering (9) | ||
| 14 | Install in the reverse order |
