Removing and installing rear seat cushion pivot bearing - AR91.12-P-1770T

MODEL 211.0 with CODE (287a) Through-loading feature

Illustrated on left side of vehicle

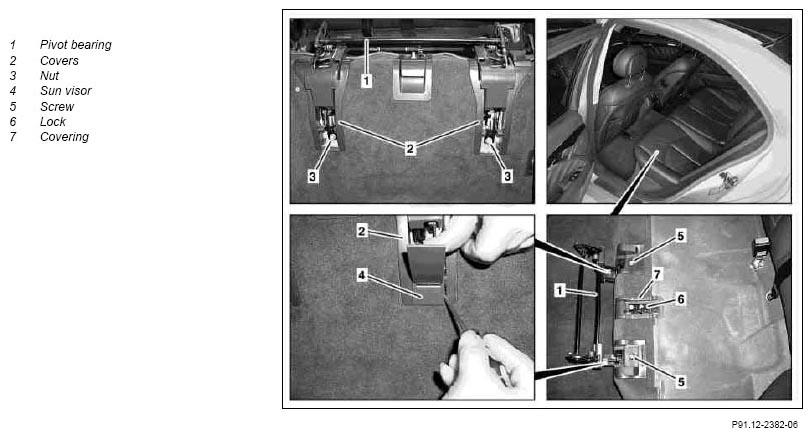

Fig 1: Identifying Rear Seat Cushion Pivot Bearing Components

G07507614

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove left or right rear seat cushion		AR91.12-P-1020TA
2	Unscrew screws (5) from top of pivot bearing (1)		*BA91.12-P-1007-02A
3	Open sun visor (4)
4	Unclip sun visor (4) with a screwdriver at the left and right covers (2)	Installation: Ensure that sun visors (4) are correctly seated.
5	Unclip covers (2) and remove upwards	Installation: Ensure that covers (2) are correctly seated.
6	Unscrew nuts (3) at pivot bearing (1)		*BA91.12-P-1014-02A
7	Remove pivot bearing (1)
8	Unscrew bolt of lock (6)		*BA91.12-P-1008-02A
9	Unscrew nut from lock (6) and remove lock (6)	Installation: Ensure that lock (6) is correctly seated.
9	Unscrew nut from lock (6) and remove lock (6)		*BA91.12-P-1009-02A
10	Remove cover (7)
11	Install in the reverse order

REAR SEAT BACKREST

Number	Designation		Model 211.0
BA91.12-P-1007-02A	Screw, rear seat cushion pivot bearing to crossmember	Nm	7
BA91.12-P-1008-02A	Screw, rear seat cushion catch to crossmember	Nm	7
BA91.12-P-1009-02A	Nut, rear seat cushion catch to crossmember	Nm	7
BA91.12-P-1014-02A	Nut, rear seat cushion pivot bearing to crossmember	Nm	7
