Retrofit iPhone kit - AZ82.70-P-0013T

MODEL 211.0## 1# with CODE (526) COMAND (without navigation) with CODE (527) COMAND APS (with navigation) with CODE (528) HIGH Class USA with CODE (530) COMAND APS USA (with navigation system) except CODE (924) Bivalent natural gas drive except vehicles with FSE11, except vehicles with FSE12, vehicles with iPod only

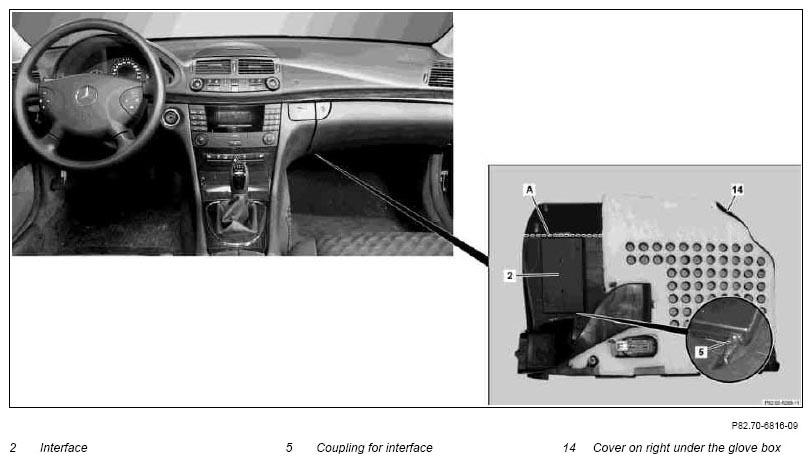

Fig 1: Identifying Interface, Coupling And Glove Box

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect battery ground line		AR54.10-P-0003T
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on battery		AH54.10-P-0001-01A
2	Remove cover below right dashboard	Note the glued on interface.
			AR68.10-P-1520T
3	Remove paneling on right A-pillar	Footwell trim.
			AR68.30-P-4050TA
4	Remove center console	Dismantle only far enough to enable the installation of lines to be exposed.
		Mounting wedge	Fig 3
5	Remove cover for stowage box
		except CODE (380) Preinstallation for MB telephone "cell phone" complete, except CODE (381a) CP-Light telephone system, except CODE (382a) MB telephone "cell phone" in armrest, except CODE (383b) CP-High telephone system	AR68.20-P-5701T
		with CODE (380) Preinstallation for MB telephone "cell phone" complete, with CODE (381a) CP-Light telephone system, with CODE (382a) MB telephone "cell phone" in armrest, with CODE (383b) CP-High telephone system	AR68.20-P-5701TA
	Install
6	Retrofit iPhone wiring harness		AZ82.70-P-0001-04TXX
7	Install remaining parts onto vehicle	Steps 5 up to 1.
8	Carry out function check	Check iPhone functions as per iPhone operating instructions in vehicle.

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
