Retrofit wiring harness - AZ82.70-P-0001-04TXX

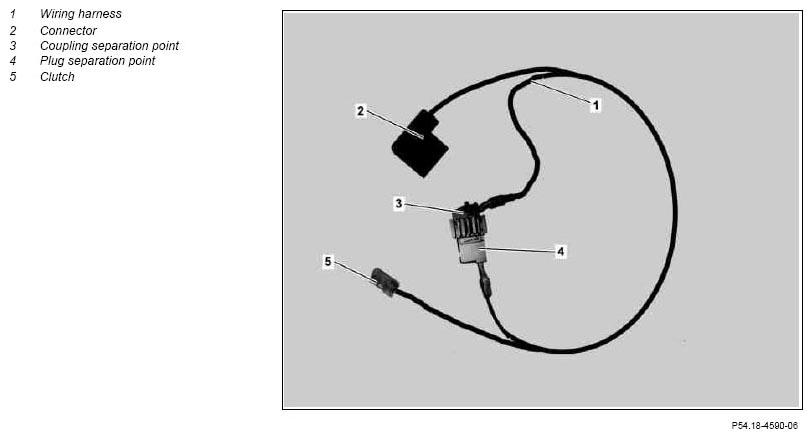

Fig 1: Identifying Wiring Harness Components
G07503265Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. Detach wiring harness from connector.
  2. Detach coupling (3) from connector.
  3. Note color code of coupling in contact cavities.

    IMPORTANT The connection in the center console is made again after this has been performed.

    Fig 2: Identifying Connector & Coupling
    G07503266Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  4. Route wiring harness (1) along vehicle's wiring harness and into the front passenger footwell.

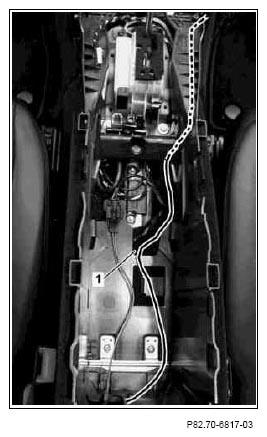

    Fig 3: Routing Wiring Harness
    G07503267Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  5. Unscrew securing bolts (7 and 8).
  6. Route wiring harness (1) along the vehicle's own wiring harness into the stowage compartment.

    NOTES Do not damage the wiring harness by squeezing or pinching it.

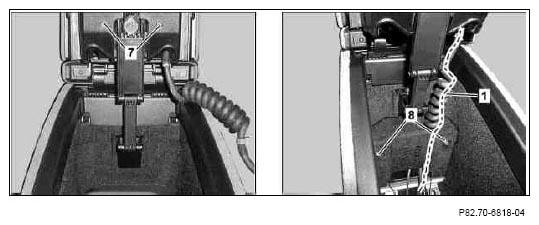

    Fig 4: Routing Wiring Harness Into Stowage Compartment
    G07503268Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  7. Route iPhone wiring harness to vehicle's own wiring harness and under the center console to the instrument panel, then fasten in place.
  8. Route iPhone wiring harness further and under the glove box to the interface control unit (2).
  9. Remove the iPhone wiring harness from the interface control unit (2) and tie up to one side.
  10. Connect coupling (5) of iPhone wiring harness to the interface control unit.

    NOTES Do not damage the wiring harness by squeezing or pinching it.

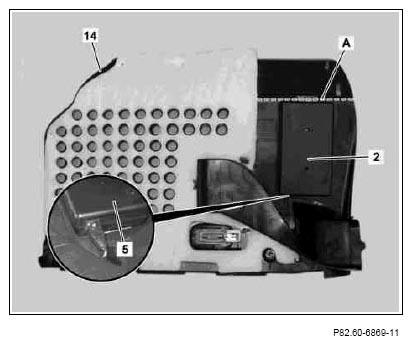

    Fig 5: Identifying Interface Control Unit And iPhone Wiring Harness Coupling
    G07503269Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
