Retrofit FSE 12 hands-free system - AZ82.70-P-0011TB
MODEL 211.0## /2## 1# with CODE (273) Portable CTEL preinstallation (non-networked), VDA wiring with CODE (523) MB Audio 20 radio except CODE (494) USA version except CODE (498) Japan version except CODE (924) Bivalent natural gas drive except retrofitted iPod kit, only vehicles with Audio 20 CD radio (not Audio 20 CC radio)

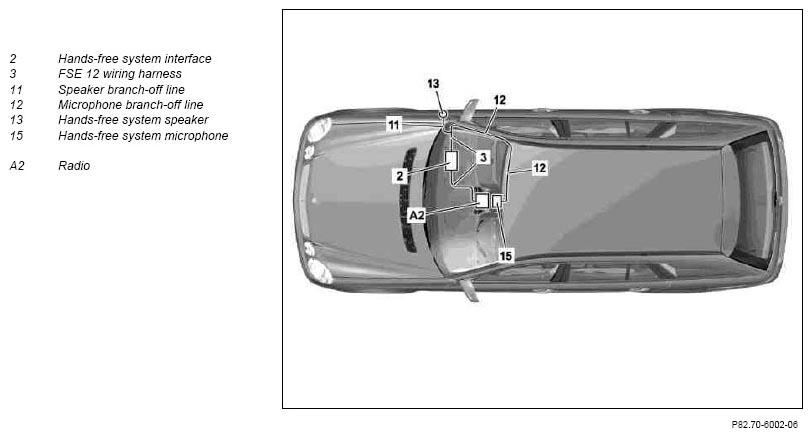

Routing diagram, FSE 12 wiring harness, shown on model 211.2
| N o FSE 12 wiring harness of another model series must be installed. Risk of short circuit! | |||
| Removing | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Disconnect ground cable of battery | ||
| Disconnect/connect battery's ground cable | Model 211.0/ 6 | AR54.10-P-0003T | |
| Disconnect/connect battery's ground cable | Model 211.2 | AR54.10-P-0003TA | |
| 2 | Remove radio | ||
| Remove/install radio | AR82.60-P-7502T | ||
| 3 | Remove overhead control panel control unit | ||
| Remove/install overhead control panel control unit | AR82.20-P-1000T | ||
| 4 | Remove cover below instrument panel (right) | ||
| Remove/install cover below instrument panel (right) | AR68.10-P-1520T | ||
| 5 | Remove paneling on right A-pillar | ||
| Remove/install paneling on A-pillar | Footwell trim. | AR68.30-P-4050TA | |
| 6 | Remove speaker in right front footwell | ||
| AR82.62-P-7853T | |||
| 7 | Remove paneling on right A-pillar | ||
| Remove/install paneling on A-pillar | AR68.30-P-4050T | ||
| 8 | Remove right front door sill molding | ||
| 9 | Remove front floor covering (right) | ||
| Remove/install front floor covering (right) | AR68.20-P-2070T | ||
| Install | |||
| 10 | Retrofit the CTEL mounting bracket with PSC adapter plug | ||
| 11 | Retrofit hands-free system wiring harness | AZ82.70-P-0005-02TD | |
| 12 | Retrofit control unit interface | AZ82.70-P-0001-07T | |
| 13 | Retrofit microphone for hands-free system | AZ82.70-P-0005-08TB | |
| 14 | Retrofit speaker | AZ82.70-P-0001-03TB | |
| 15 | Perform version coding subsequently | ||
| AN82.61-P-0001-05T | |||
| STAR DIAGNOSIS diagnosis system. | *WH58.30-Z-1048-13A | ||
| 16 | Carry out start-up and function test | ||
| 17 | Install remaining parts onto vehicle |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| B6 787 57 21 | Hands-free system FSE 12 | 1 |
| B6 787 58 46 | Portable CTEL cradle for Nokia 6220, 6230, 6230i | As required |
| B6 787 58 42 | Portable CTEL cradle for Nokia 6020, 6021 | As required |
| B6 787 58 47 | Portable CTEL cradle for Nokia 6820, 6822 | As required |
| B6 787 58 22 | Portable CTEL cradle for Nokia 6210, 6310, 6310i | As required |
| B6 787 58 35 | Portable CTEL cradle for Nokia 6100, 6610, 6610i, 7250i | As required |
| B6 787 58 34 | Portable CTEL cradle for Siemens S65, SP65 | As required |
| B6 787 58 41 | Portable CTEL cradle for Siemens CX65, CXT65, CX65V, CX70, CXT70, CX70V | As required |
| B6 787 58 52 | Portable CTEL cradle for Siemens SK65 | As required |
| B6 787 58 30 | Portable CTEL cradle for Sony Ericsson T610, T630 | As required |
| B6 787 58 36 | Portable CTEL cradle for Sony Ericsson K700i | As required |
| Accessories | Portable CTEL mounting bracket with PSC adapter plug (actual unit ordered depends on customer request, vehicle model and equipment) | 1 |
