Remove/install center high-mounted stop lamp - AR82.10-P-5375TM
MODEL 211.2 as of 1.6.06
| Remove/install | |||

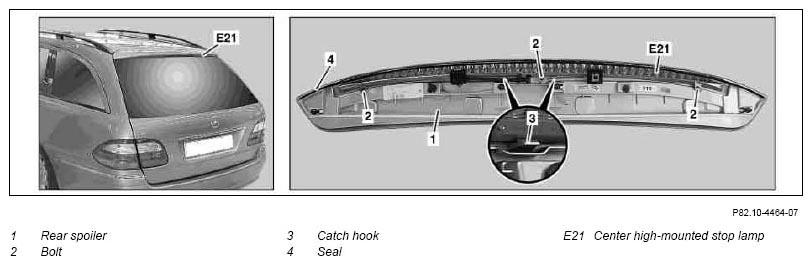

| 1 | Remove rear spoiler (1) | AR72.20-P-4000TA | |
| 2 | Remove bolts (2) | *BA82.10-P-1001-05A | |
| 3 | Detach seal (4) from rear spoiler (1) starting at outer ends up to center high-mounted stop lamp (E21) | ||
| 4 | Unclip center high-mounted stop lamp (E21) from rear spoiler (3) at catch hooks | ||
| 5 | Remove center high-mounted stop lamp (E21) from rear spoiler (1) | ||
| 6 | Install in the reverse order |
ADDITIONAL STOP LAMP
| Number | Designation | Model 211.2 | |
|---|---|---|---|
| BA82.10-P-1001-05A | Bolt, center high-mounted stop lamp to rear spoiler | Nm | 2 |
