Remove, install rear spoiler - AR72.20-P-4000TA

MODEL 211.2 as from 1.6.06

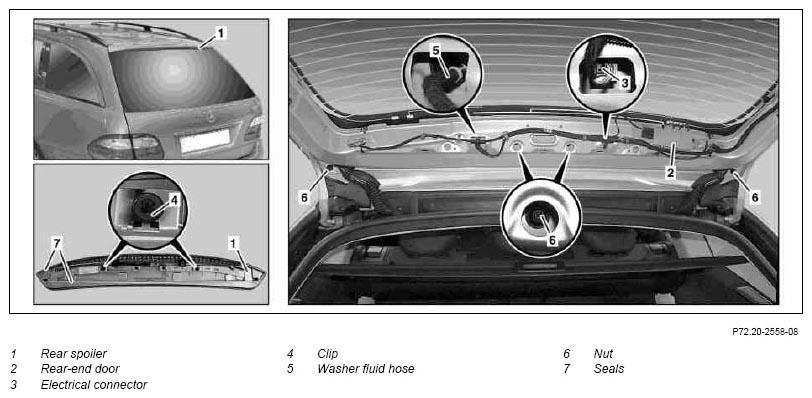

Fig 1: Identifying Rear Spoiler Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove liner from tailgate (2)	Remove only top paneling.	AR72.20-P-3520T
2	Disconnect electrical connector (3)
3	Remove washing water hose (5) from windshield washer nozzle	Plug washing water hose (5) with suitable plug.
4	Unscrew nuts (6).		*BA72.20-P-1009-02A
		Rechargeable drill/screwdriver	*WH58.30-Z-1007-20A
5	Unclip rear spoiler (1) in area of clips (4) from rear-end door (4) and remove.	Manually unclip rear spoiler (2) with aid of second mechanic and remove.
6.1	Replace gaskets (7).	When replacing rear spoiler (1).
7	Install in the reverse order

TAILGATE

Number	Designation		Model 211.2
BA72.20-P-1009-02A	Nut for rear spoiler on tailgate	Nm	1.5

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1007-20A	Cordless drill/driver
