Remove/install rear shock absorber - AR32.25-P-0110TA

MODELS 211.2/6

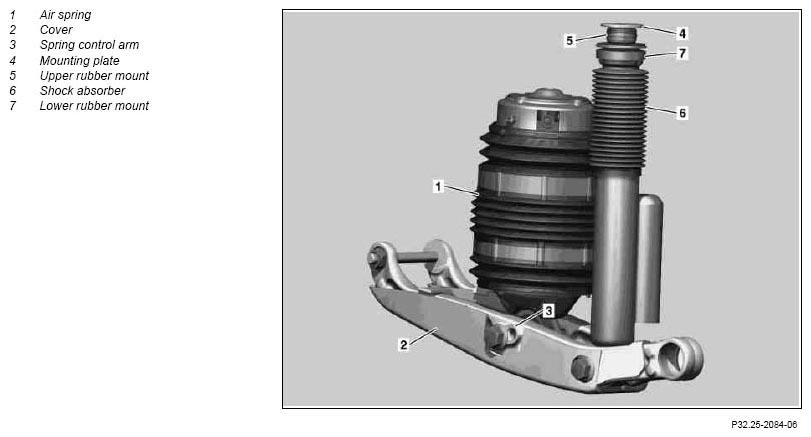

Fig 1: Identifying Rear Shock Absorber Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

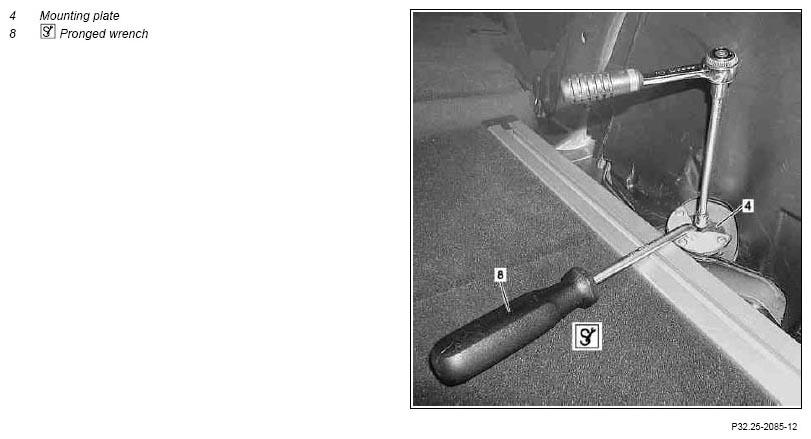

Fig 2: Holding Mounting Plate

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates below the hoist support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  caused by moving parts that can pinch, crush or  , in extreme cases even sever extremities.	Keep all body parts and limbs away from moving mechanical components.	AS00.00-Z-0009-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	When working on the rear axle, ensure that the surfaces of the aluminum parts are kept free of scratches, cracks and indentations. Otherwise the service life of the parts will be affected
	Tighten nuts and bolts of chassis components only when vehicle is in the ready-to-drive condition.
1.1	Remove rear passenger compartment side trim panel	Model 211.2	AR68.30-P-4780T
2	Raise vehicle with lifting platform		AR00.60-P-1000T
3	Remove rear wheel
	Remove and install wheels		AP40.10-P-4050Z
4	Remove inner fender from rear fender		AR88.10-P-1400T
5.1	Disconnect rear axle multiple circuit junction connector for damping valve unit at rear axle	Vehicles with AIRmatic (semi-active air suspension), code 489	AR32.22-P-1500-01TH
6	Remove cover (2) from spring control arm (3)
7	Discharge to residual pressure in air spring (1) using STAR DIAGNOSIS and immediately raise spring control arm (3) roughly 30 mm with transmission jack	The air spring must not be full extended otherwise the air spring will be damaged beyond repair.
	Special information on AIRmatic	Vehicles with AIRmatic (semi-active air suspension), code 489	AH32.22-P-1000-02T
	Notes on air suspension	Vehicles without Airmatic (semi-active air suspension)	AH32.22-P-1000-01T
		Vehicles with AIRmatic (semi-active air suspension), code 489	AR32.22-P-1500-04T
		Vehicles without AIRmatic	AR32.22-P-1500-04TA
		Socket wrench bit Installation:  Carefully observe the official charging process for the air springs to prevent them from possible destruction: ↓ Charge air spring with STAR DIAGNOSIS at design level.	*211589000900
		Vehicles with AIRmatic (semi-active air suspension), code 489	AR32.22-P-1500-03T
		Vehicles without Airmatic (semi-active air suspension)	AR32.22-P-1500-03TA
		Transmission jack	*WE58.40-Z-1030-11A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A
8	Counterhold mounting plate (4) with puller (8) and loosen by turning the piston rod	Installation:  Apply the torque to the piston rod to tighten the mounting plate. Otherwise static friction between the mounting plate and the upper rubber bushing (5) will prevent adequate torque from being applied.
			*BA32.25-P-1001-03G
			*211589000500
9	Remove mounting plate (4) and upper rubber mount (5)
10	Detach shock absorber (6) from spring control arm (3)		*BA32.25-P-1002-03G
11	Slide damper (6) together and remove
12	Remove lower rubber mount (7)
	Check
13	Check upper and lower rubber bushings (5, 7)	Replace cracked, oiled and deformed rubber mounts.
14	Check shock absorber (6) for damage	Replace if necessary.
15	Install in the reverse order

REAR AXLE SHOCK ABSORBER

Number	Designation				Model 211.2/6
BA32.25-P-1001-03G	Mounting plate, shock absorber to frame floor	M10		Nm	20
BA32.25-P-1002-03G	Self-locking nut to spring control arm shock absorber	M10	1st stage	Nm	50
			2nd stage	∠°	90

Fig 3: Identifying Puller (211 589 00 05 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Socket (211 589 00 09 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00

WORKSHOP EQUIPMENT

WE58.40-Z-1030-11A

Transmission jack
